Export

Rear Lift Window Release Switch (Export): Removal Procedure:

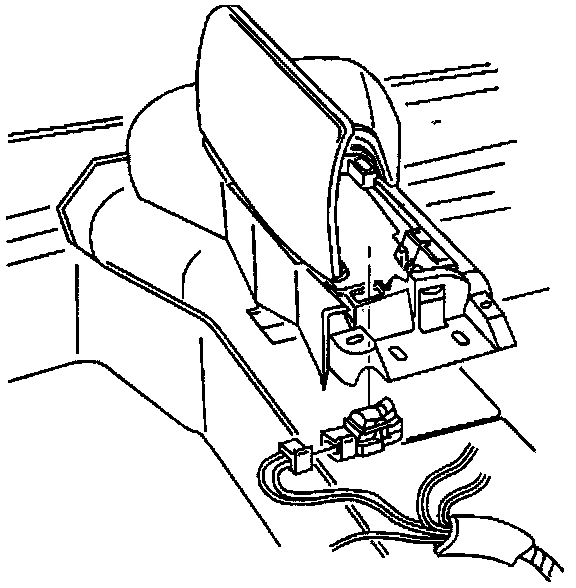

REMOVAL PROCEDURE
1. Remove the console.
2. Disconnect the electrical connector from the rear compartment lift window release switch.
3. Using a small flat bladed tool, release the switch retaining tabs from the underside of the console.
4. Remove the switch from the console.

Rear Lift Window Release Switch (Export): Installation Procedure:

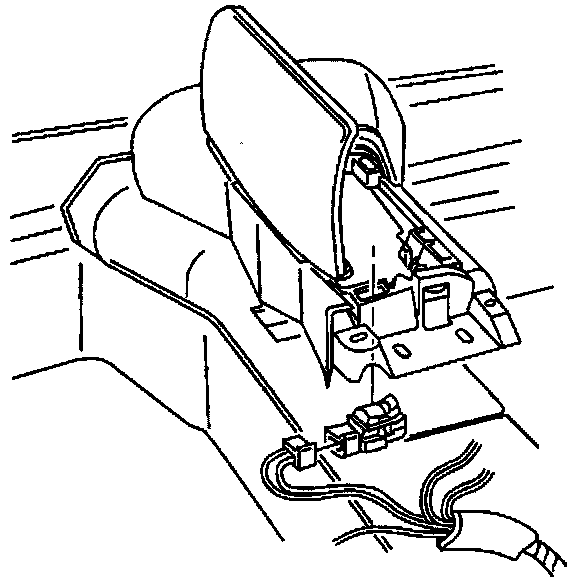

INSTALLATION PROCEDURE
1. Position the rear compartment lift window release switch to the underside of the console.
2. Push the switch to secure the switch retaining tabs.
3. Connect the electrical connector to the switch.
4. Install the console.
