Home >> Chevrolet >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> Turn, Hazard, Park, Marker, & Stop Lamps

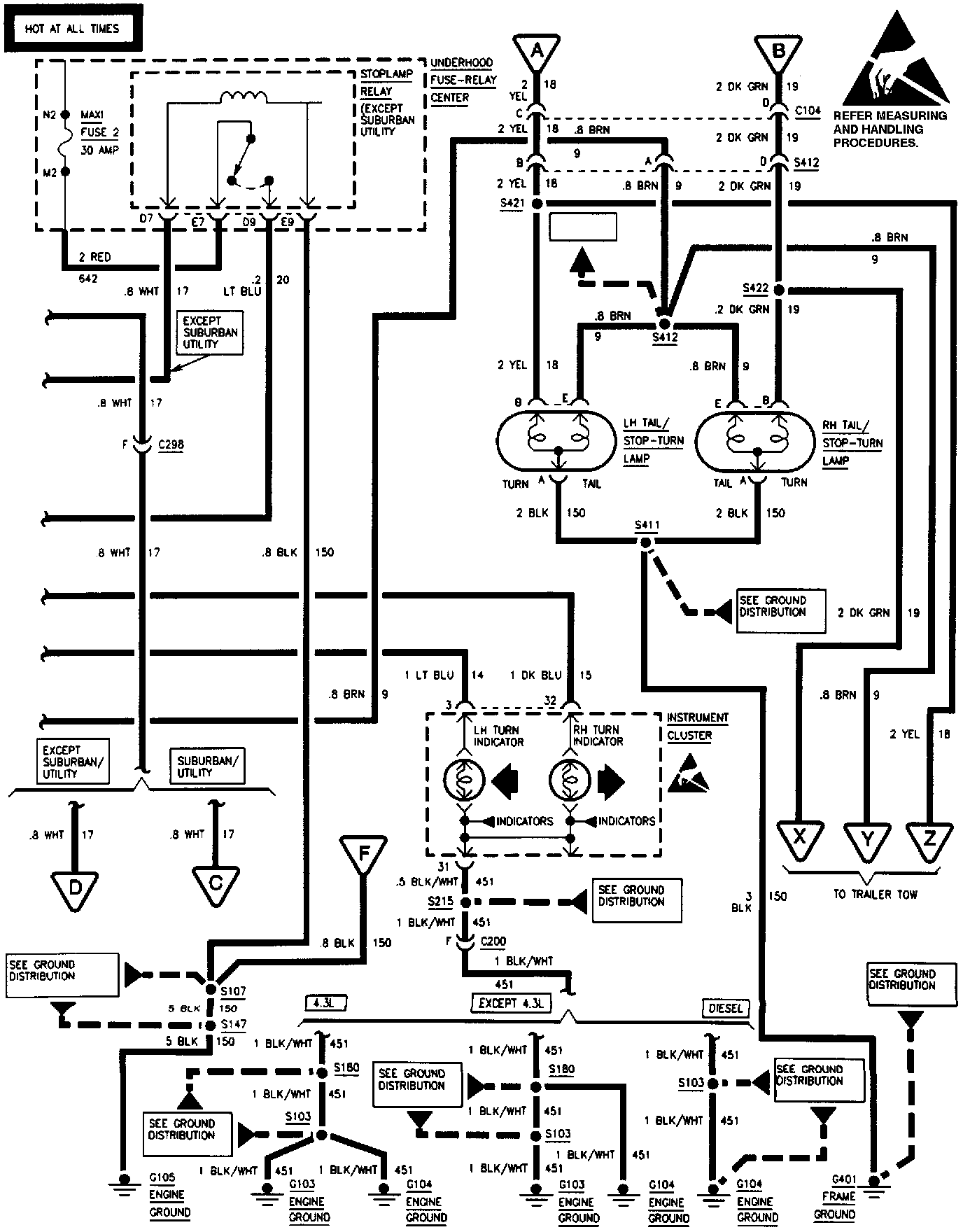

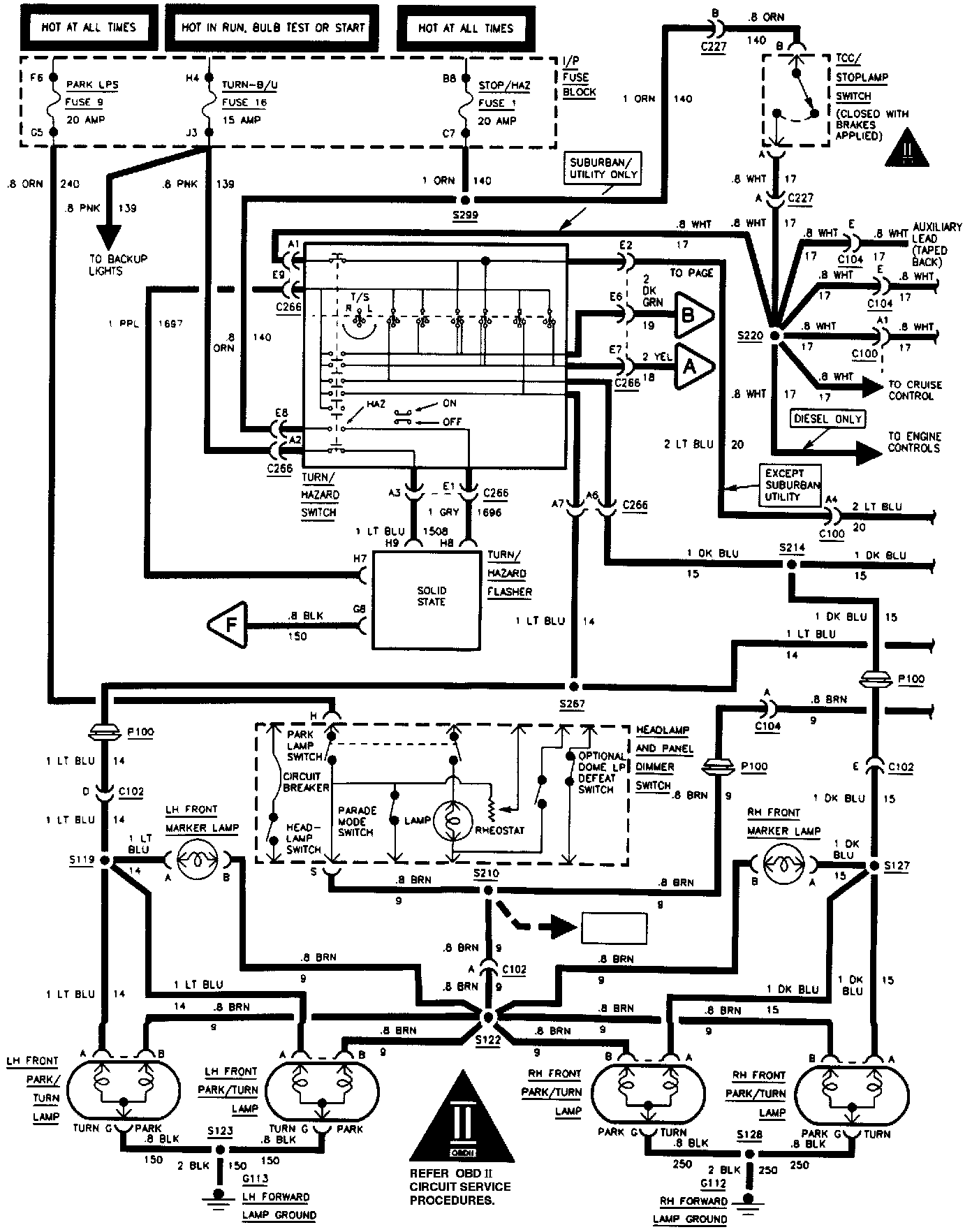

Turn, Hazard, Park, Marker, & Stop Lamps
