Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1997
>>
K 2500 Suburban 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

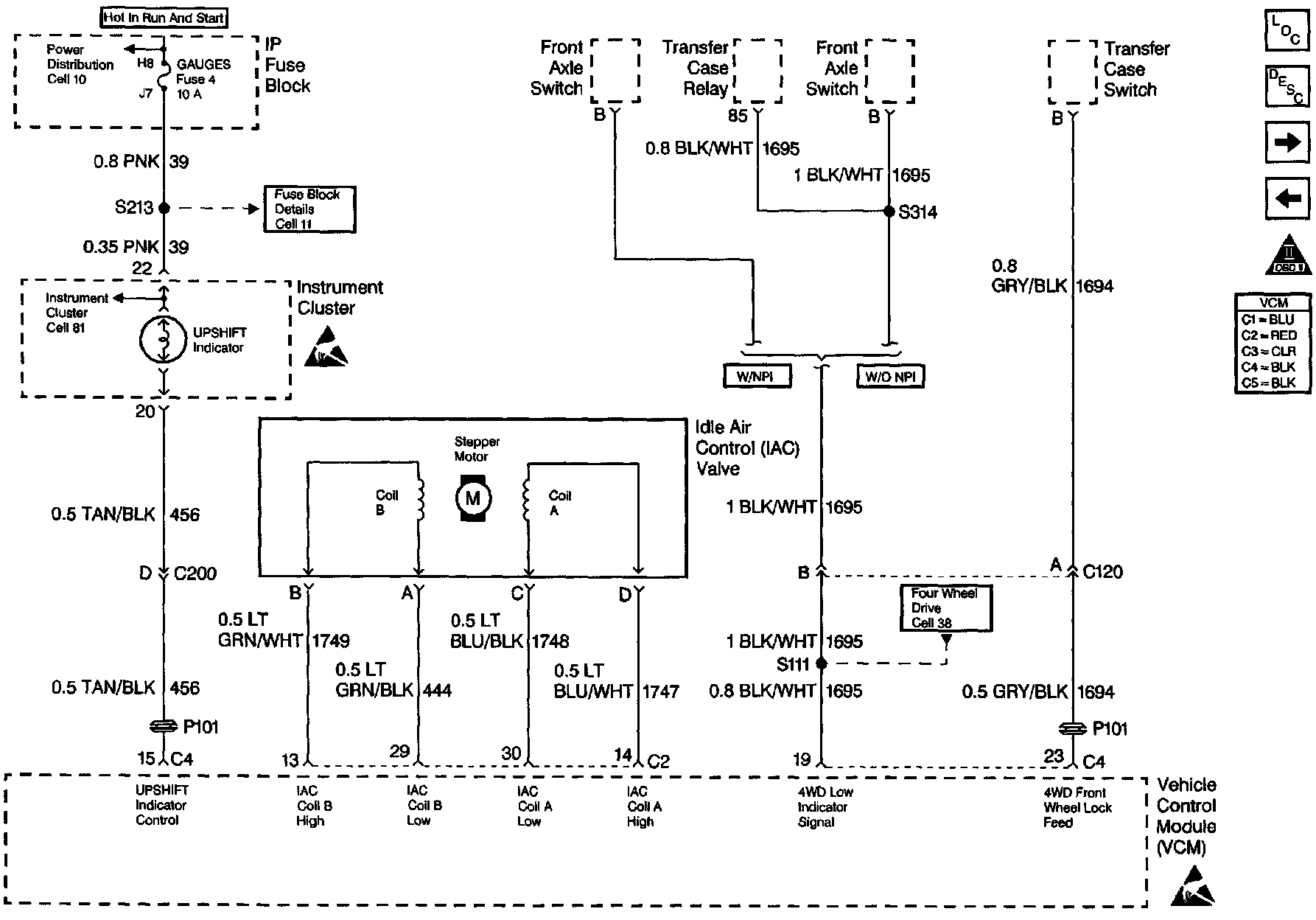

IAC & 4WD Indicator
IAC & 4WD Indicator
