Home >> Chevrolet >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> 4 Door

4 Door

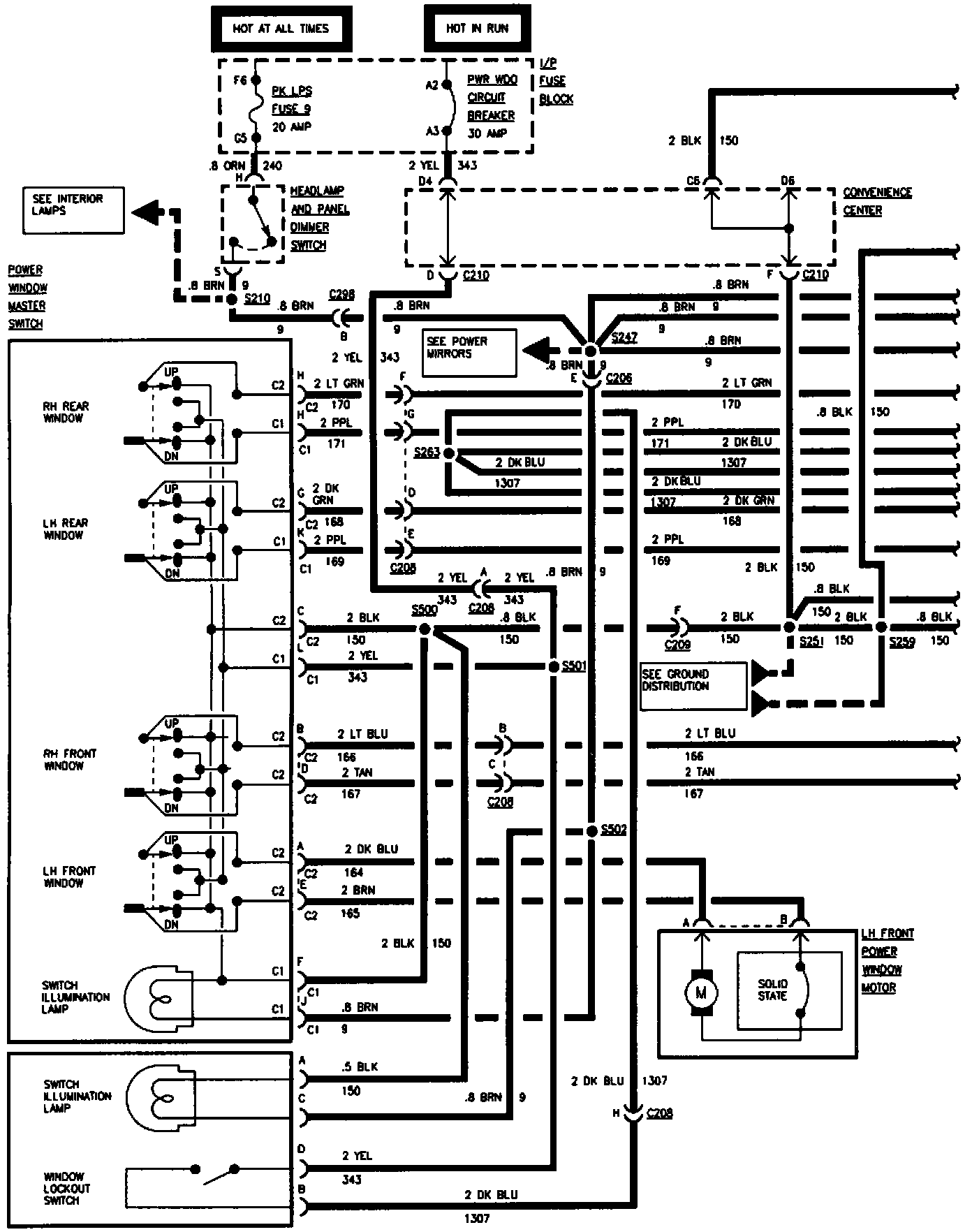

Power Windows (Part 1 Of 2):

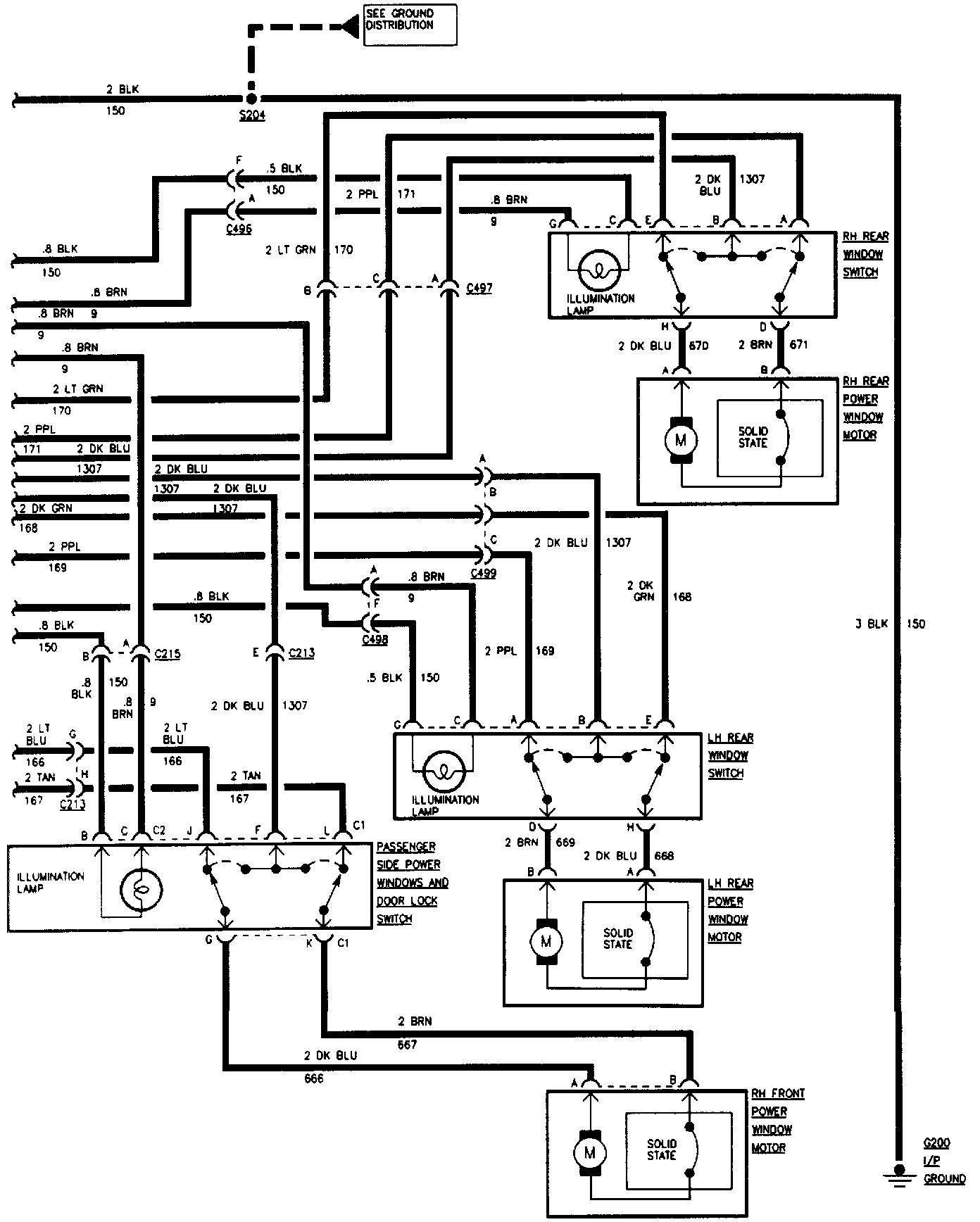

Power Windows (Part 2 Of 2):
