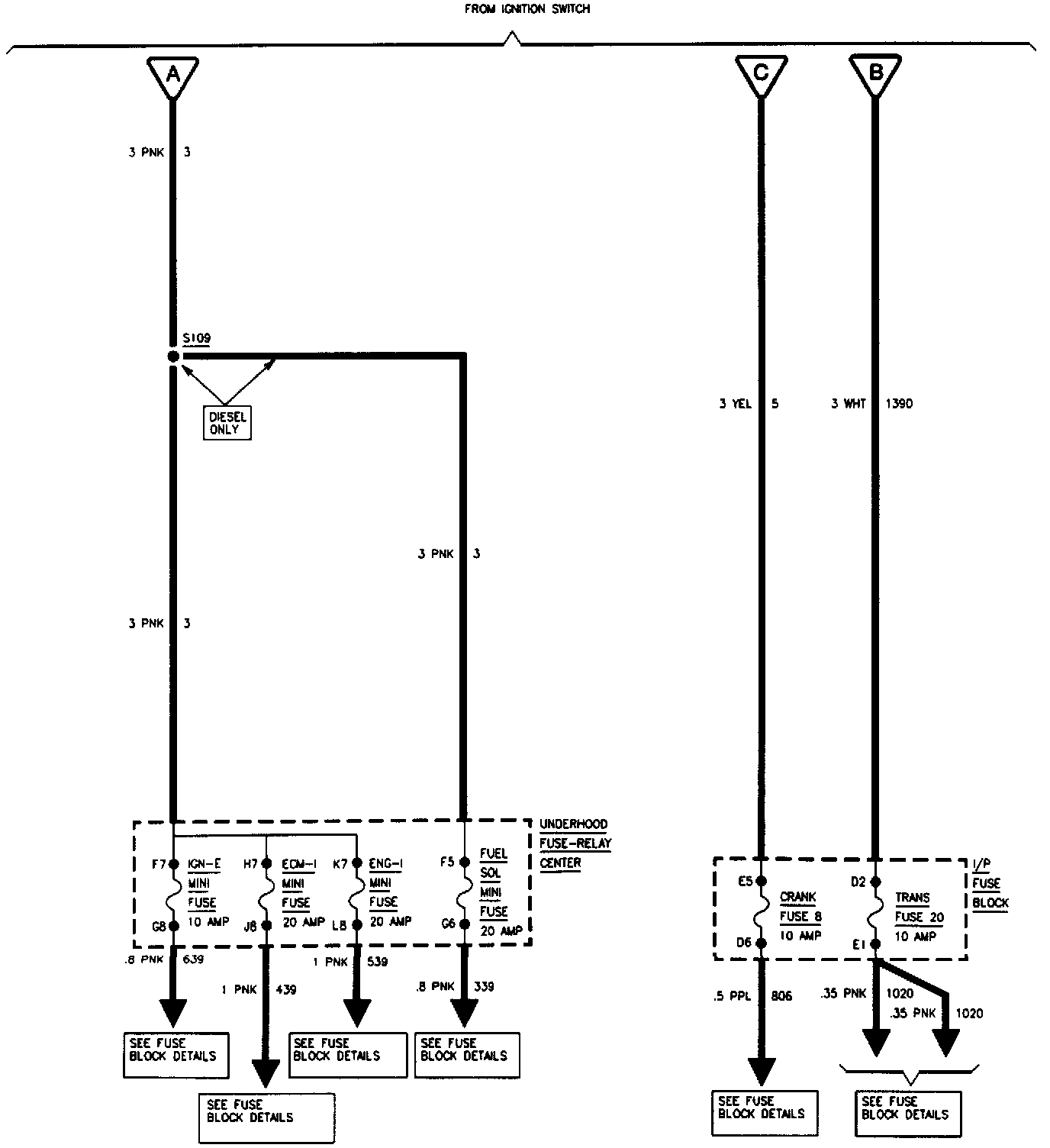

Power Distribution (Part 1 Of 4):
Power Distribution (Part 2 Of 4):
Power Distribution (Part 3 Of 4):
Power Distribution (Part 4 Of 4):
