Evaporative System Service Port: Description and Operation

EVAP Service Port:

DESCRIPTION

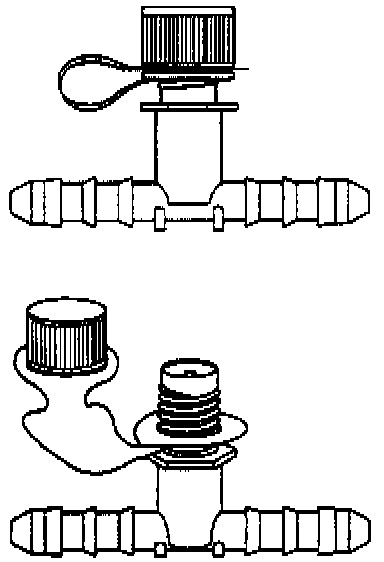

The Evaporative System Service Port is located in the evaporative hose located between the purge solenoid and the canister. The service port is identified by a green colored cap. The port contains a schrader valve and fittings in order to allow the connection of the service tool kit Enhanced EVAP Pressure Purge Diagnostic Cart J 41413.
