Camshaft Position Sensor: Description and Operation

Camshaft Position Sensor:

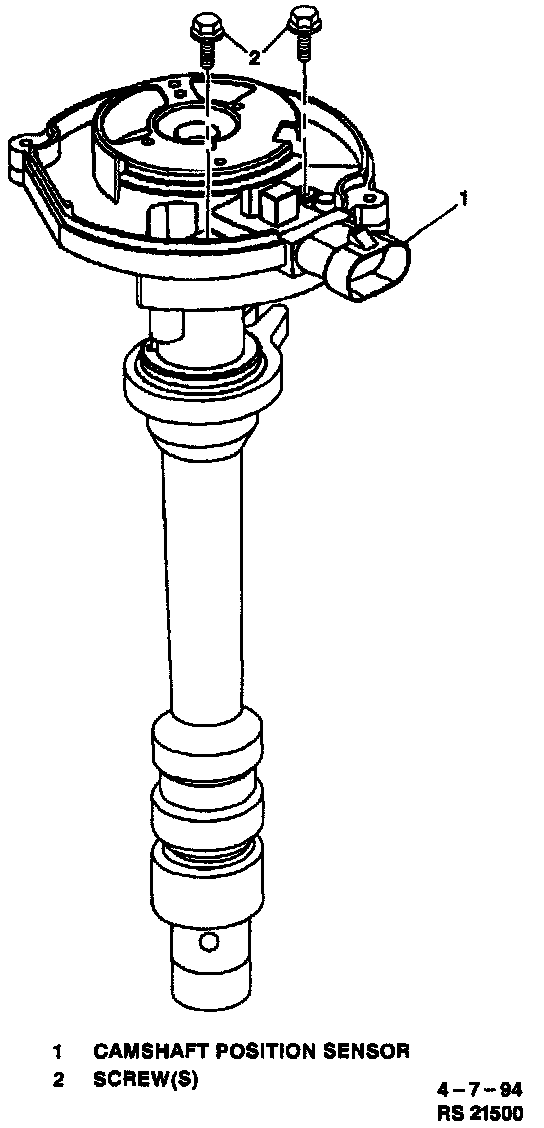

The Camshaft Position (CMP) sensor is located within the distributor. It's operation is very similar to the Crankshaft Position (CKP) sensor however it will provide one pulse per camshaft revolution (1x signal). This signal is not detrimental to the driveability of the vehicle. The Vehicle Control Module (VCM) utilizes this signal in conjunction with the crankshaft position to determine which cylinder(s) are misfiring.
