Rear Servo Pin Specification

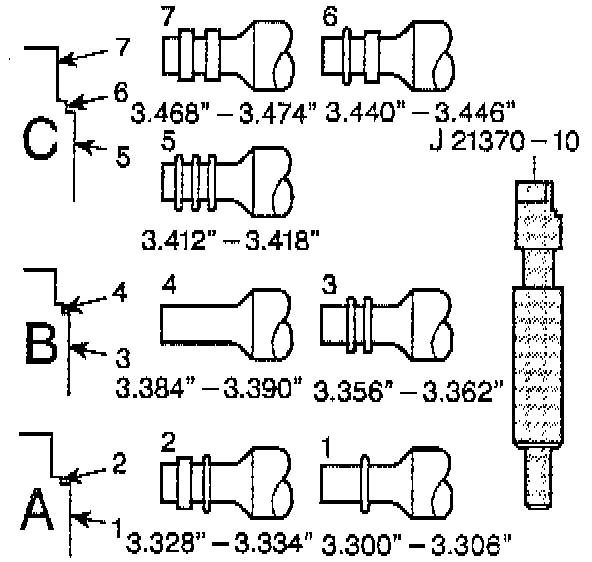

Refer to the rear servo pin selection chart in order to determine the correct pin usage.
