Home >> Chevrolet >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Instrument Panel (I/P) Fuse Block - Fuses >> Fuse 4 - GAUGES

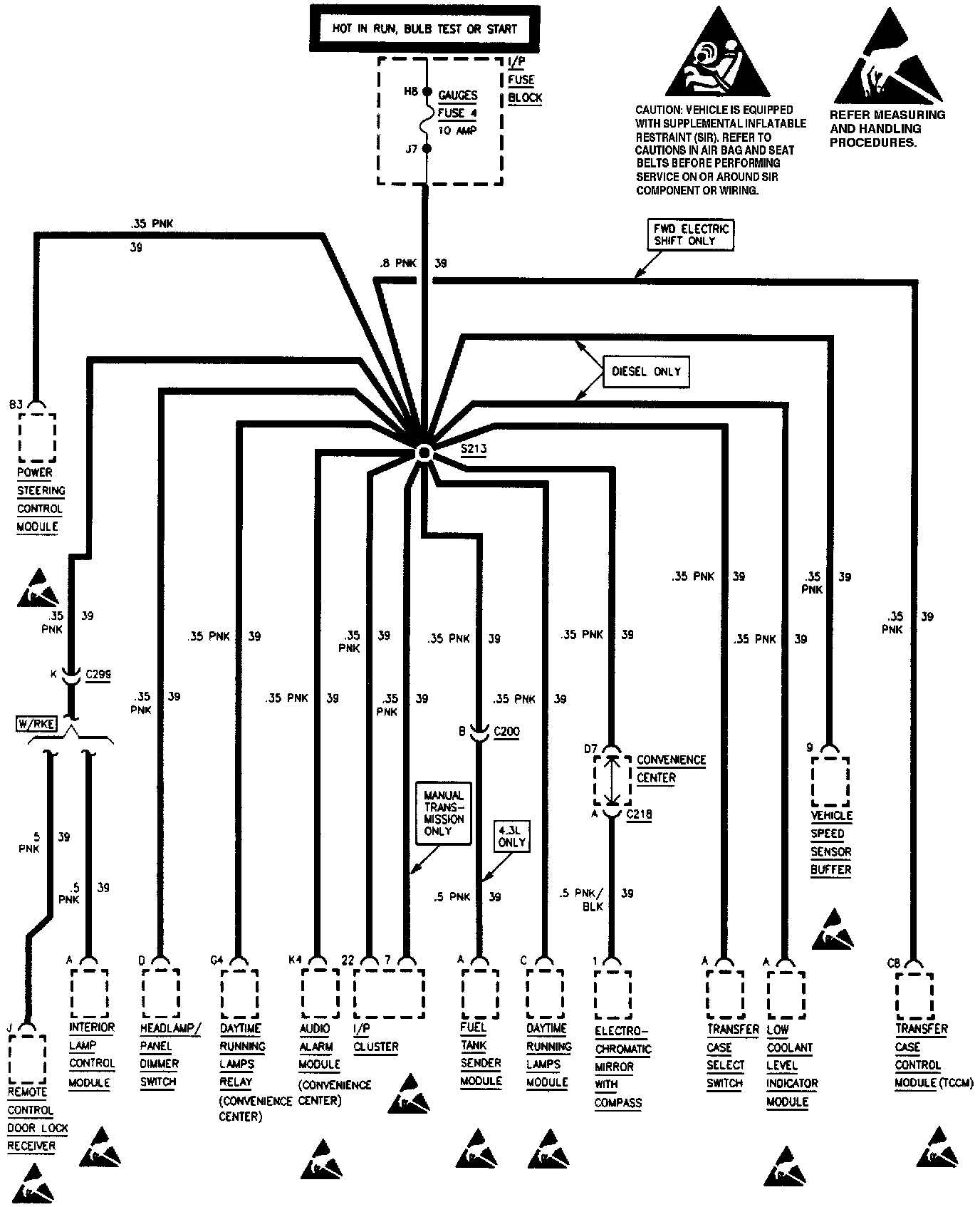

Fuse 4 - GAUGES

Fuse Block Details:
