Linear Shift Assembly - Off Vehicle
^ Tools Required:- J 41352 Modular Column Holding Fixture
- J 41396 Park Lock Cable Pliers
- Or Equivalent
CAUTION: Linear shift assembly (40) may be removed as an assembly or certain components may be disassembled as necessary to do repairs. Remove or disassemble only those components necessary to do repairs.
REMOVAL
Remove or disconnect the following:
1. Do all removal steps, Remove or disconnect , lower and upper shroud.
2. Park lock cable assembly (48) from lock module assembly (15).
- Lock cylinder should be in "OFF-LOCK" position and gear shift in "PARK" position.
- Insert small blade screwdriver into slot in module assembly (15). Push against locking tab on end of cable assembly (48) and remove.
3. Pry actuator arm of electrical BTSI actuator (61) from outer shift cable ball stud on cable shift cam assembly (44) and mounting pin on jacket (58).
4. Transaxle cable from inner shift cable ball stud on cable shift cam assembly (44).
5. Three flat head 6 -lobed socket tap screws (43).
- Shift column to "NEUTRAL" position to gain access to lower socket tap screw (43).
6. Linear shift assembly (40) from column.
INSTALLATION
CAUTION: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion Inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
Install or connect the following:
1. Linear shift assembly (40) to column.
2. Three flat head 6-lobed socket tap screws (43).
- Linear shift assembly (40) must be out of "PARK" position to install lower socket tap screw (43). Tighten (43) to 10 Nm (89 lb in).
3. Transaxle cable to inner shift cable ball stud on cable shift cam assembly (44).
4. Park lock cable assembly (48) to lock module assembly (15).
- Lock cylinder should be in "OFF-LOCK" position and gear shift in "PARK" position.
- Locking tab on end of cable (48) to slot in module assembly (15).
5. Actuator arm of electrical BTSI actuator (61) to outer shift cable ball stud on cable shift cam assembly (44).
6. Do Adjust and Inspect, Refer to Electrical BTSI Actuator.
- Adjust the park lock cable assembly (48).
a. Gear shift lever installed and in "PARK" position.
b. Ignition in "OFF LOCK" position and remove key.

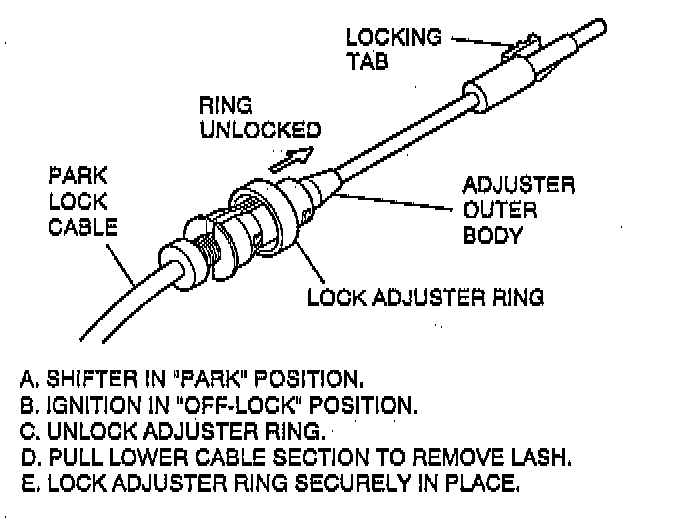

c. Unlock adjuster ring on cable assembly (48) with tool J 4136.
d. Pull on cable until park lock latch contacts gear shift lever.
- Release the cable.
e. Lock adjuster ring securely in place on cable assembly (48) with tool J 41396.
- Inspect the park lock cable assembly (48).
a. With lock cylinder in "OFF-LOCK" position, gear shift lever should not be able to shift out of "PARK" position.
b. Insert key and turn to "RUN" position.
c. Shifter in "NEUTRAL" position.
d. With gear shift in "NEUTRAL" position, lock cylinder should not be able to go into "OFF-LOCK" position.
e. Shifter in "PARK" position.
f. Lock cylinder in "OFF-LOCK" position and remove key.
7. Do all installation steps. Refer to Shroud and Lock Cylinder Set Replacement.
