Check Valve Replacement

NOTE: Remove or disconnect the steering gear from vehicle.

DISASSEMBLE

CAUTION: Use care not to damage threads of housing when removing check valve.

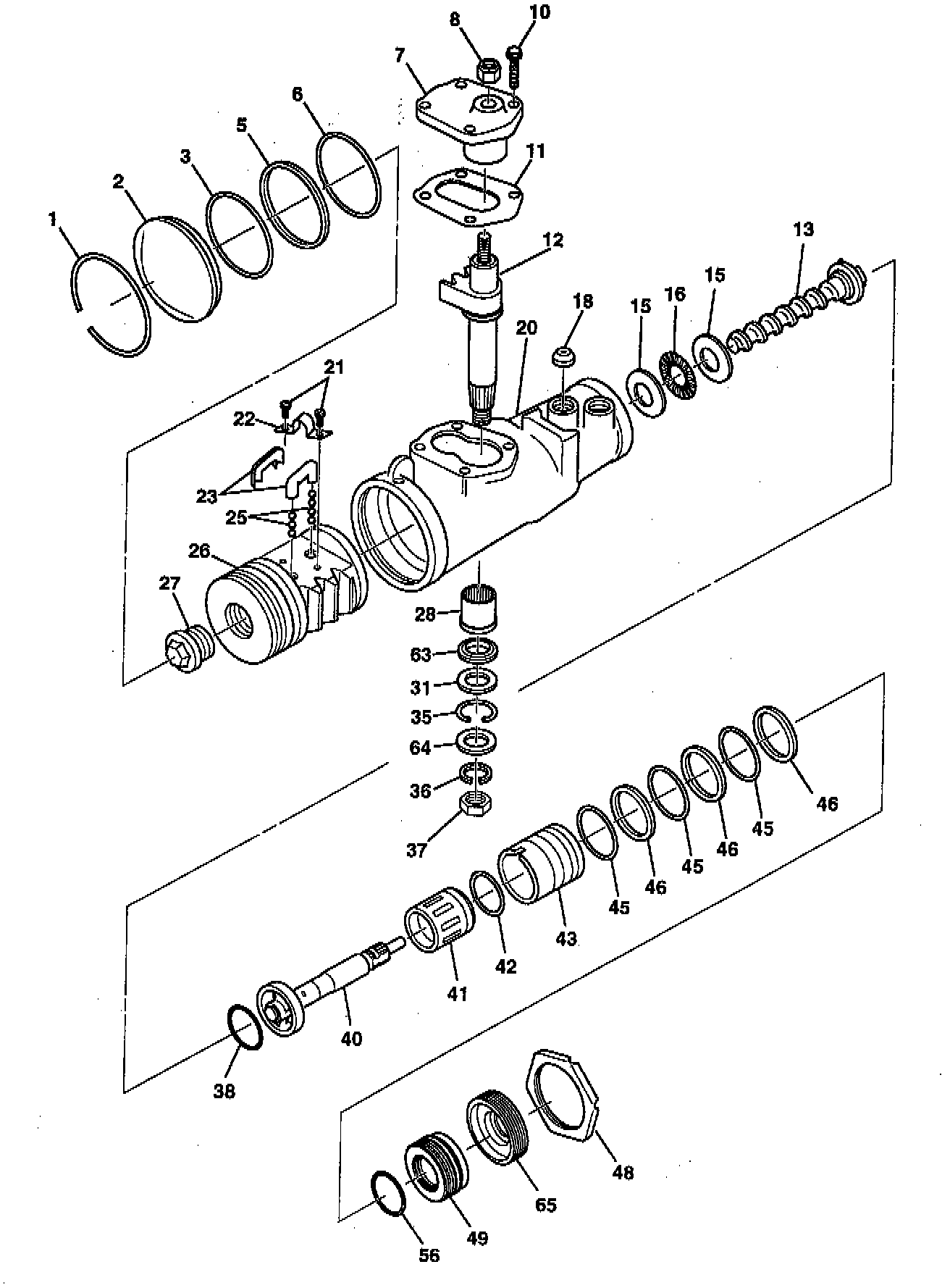

1. Check valve (18) by prying from housing with a small screwdriver.

ASSEMBLE
1. Check valve (18) using a 3/8-inch diameter piece of tubing 100 mm (4 inches) long to drive into housing.
2. Install or connect the steering gear.
