Forward Clutch Disassemble

- Tools Required:
- J 23327 Clutch Spring Compressor
- J 25018-A Clutch Spring Compressor Adapter
- Or Equivalent

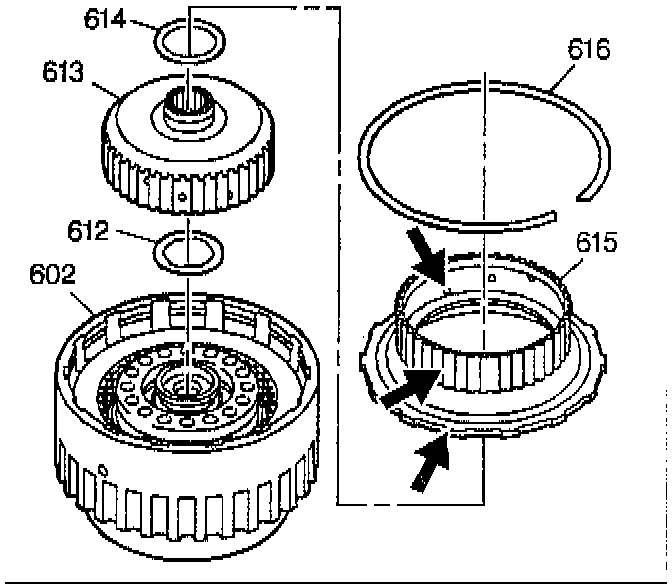

1. Remove the direct clutch hub retaining ring (616).
2. Remove the direct clutch hub (615).
3. Remove the forward clutch hub thrust washer (614) (plastic).
4. Remove the forward clutch hub (613).
5. Remove the forward clutch hub thrust washer (612) (bronze). The washer may stick to the housing.
6. Inspect the direct clutch hub for the following:
- Spline wear
- Open lubrication holes
- A damaged clutch surface

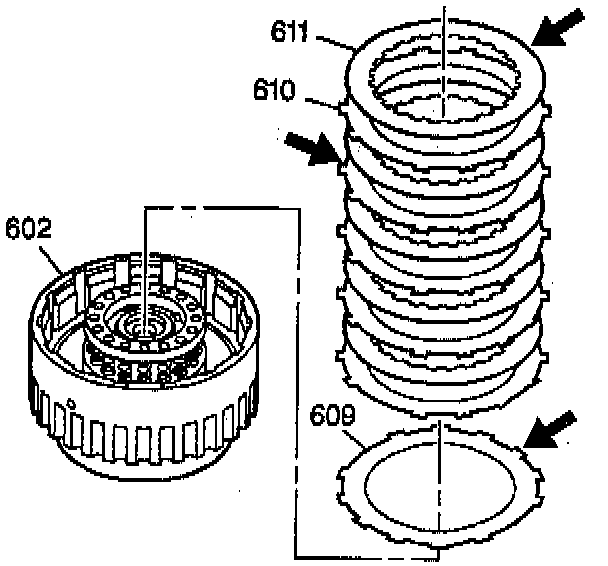

7. Remove the steel and composite clutch plates (610, 611).
8. Remove the forward clutch apply plate (609).
9. Inspect the clutch plates for the following:
- Burning
- Scoring
- Flaking
- Pitting
- Wear

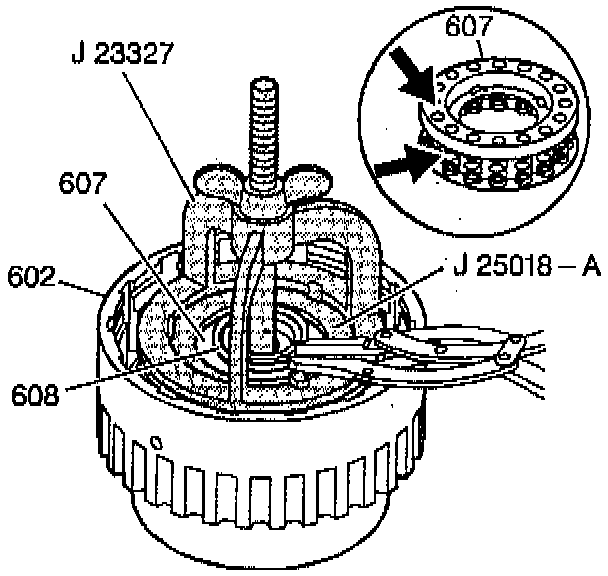

10. Use J 23327 and J 25018-A in order to remove the forward clutch spring retainer ring (608).
11. Remove the tools.
12. Remove the spring assembly (607).
13. Inspect the springs for collapsed coils and distortion.





14. Remove the forward clutch piston (606). This piston is reversible.

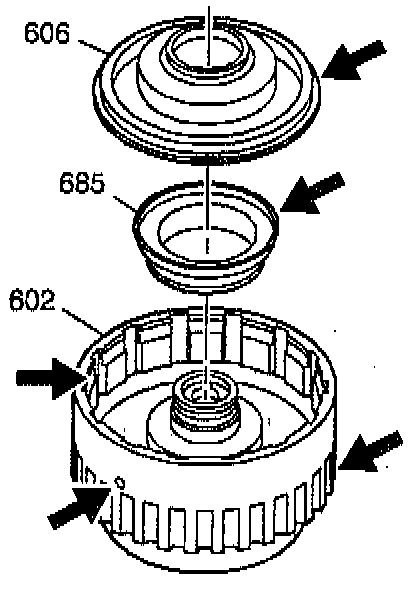

15. inspect the forward clutch piston for cracks.
16. Inspect the forward clutch piston seal for cuts, tears, and nicks.
17. Inspect the forward clutch center seal for cuts, tears, and nicks.
18. Inspect the forward clutch housing for the following:
- Wear
- Open lubrication holes
- Damaged thrust faces
- Free operation of checkball (rattles)
