Low and Reverse Band Servo Assembly Disassemble

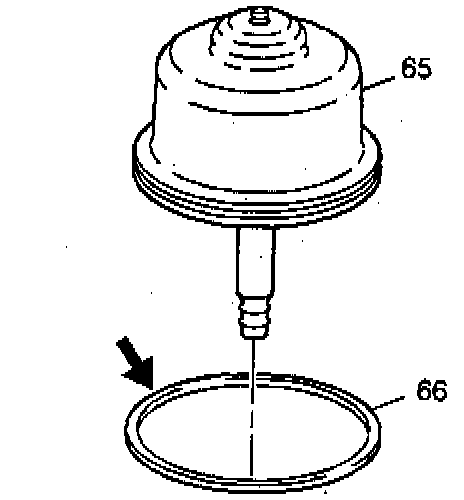

1. Remove the low and reverse band servo piston seal (66).
2. Inspect the seal for nicks and cuts.





3. Remove the low and reverse band servo piston pin retainer ring (64).
4. Remove the low and reverse band servo piston pin (78)
5. Inspect the servo piston pin (73) for wear.





6. Remove the servo piston spring retainer (72).
7. Remove the servo piston spring (71).
8. Inspect the servo piston spring for distortion.
9. Remove the low and reverse band servo piston pin spacer (87).





10. Remove the 1-2-accumulator piston (68).
11. Remove the 1-2 accumulator piston seals (67 & 69).
12. Inspect the low and reverse band servo piston (65) and the 1-2 accumulator piston (68) for porosity and damage.
13. Inspect the 1-2 accumulator piston seals (67 & 69) for nicks and cuts.
14. Remove the 1-2 accumulator assist spring (88).
