Transmission Oil Pan Installation

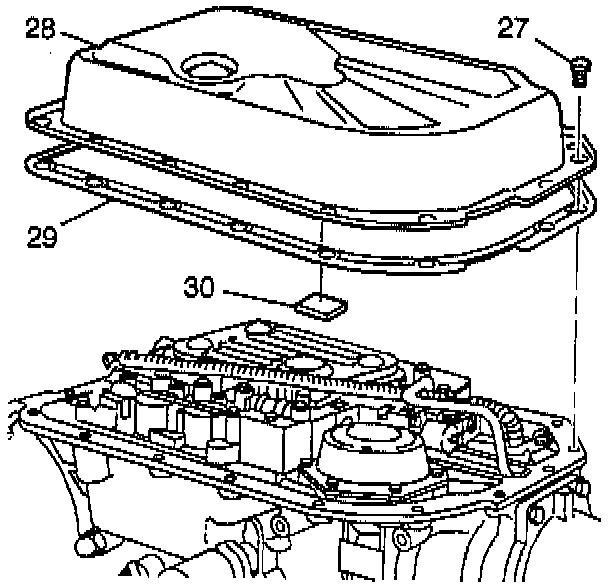

1. Reinstall the transmission oil pan gasket (29).

Important: You may reuse the oil pan gasket.

2. If you removed the transmission oil pan magnet (30), install the magnet into the oil pan (28).
3. Install the transmission oil pan (28).
4. Install the oil pan bolts (27). Tighten the bolts to 24 Nm (18 ft. lbs.).
