Torque Converter Clutch Solenoid: Service and Repair

REMOVE OR DISCONNECT
1. Raise the vehicle.
2. Oil pan and filter.

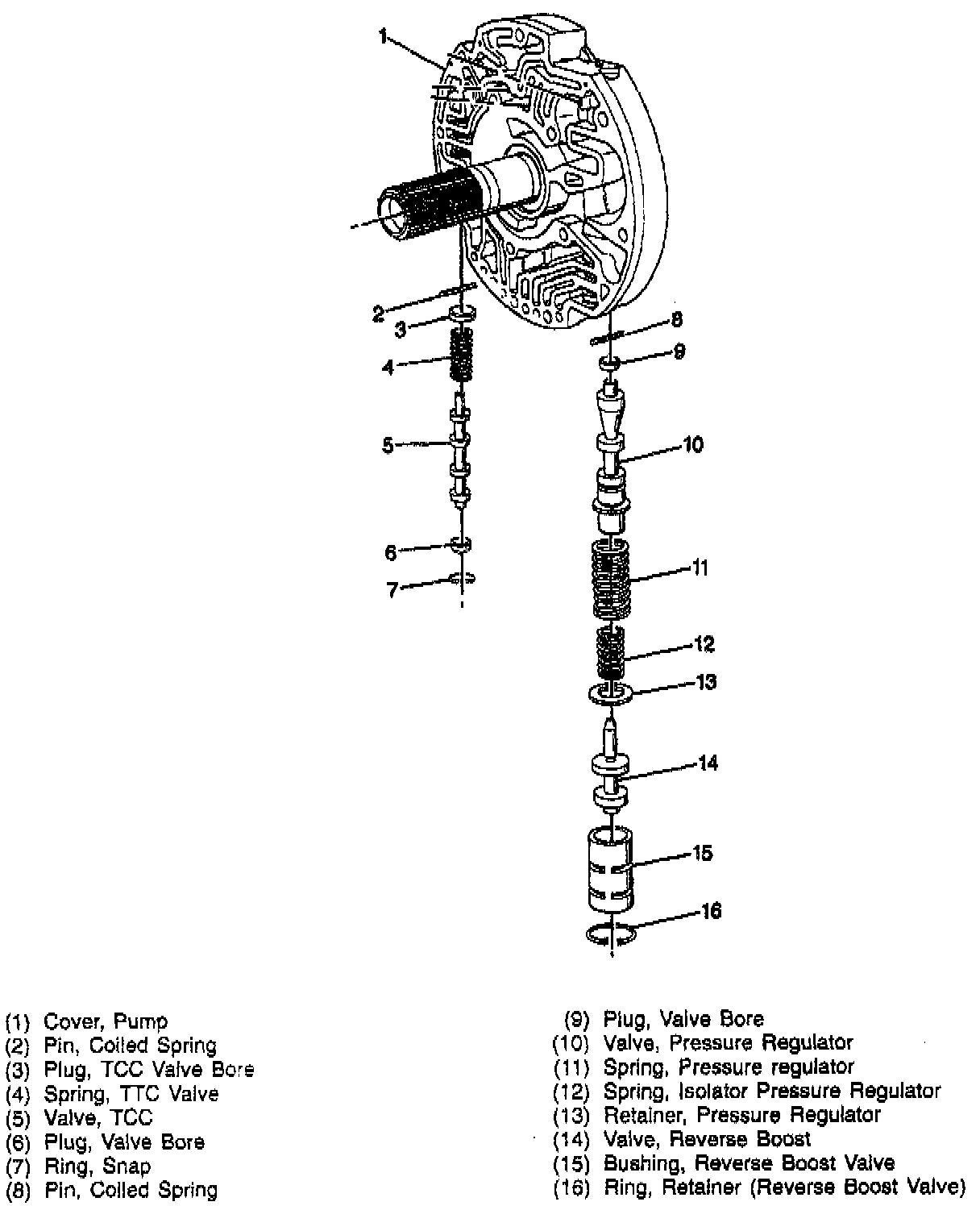

3. Snap ring, plug, valve and the spring.

INSTALL OR CONNECT
1. Spring, valve, plug, and the snap ring.
2. Filter and oil pan and fluid.
3. Lower the vehicle.
