Manual Temp Control, Dual Zone

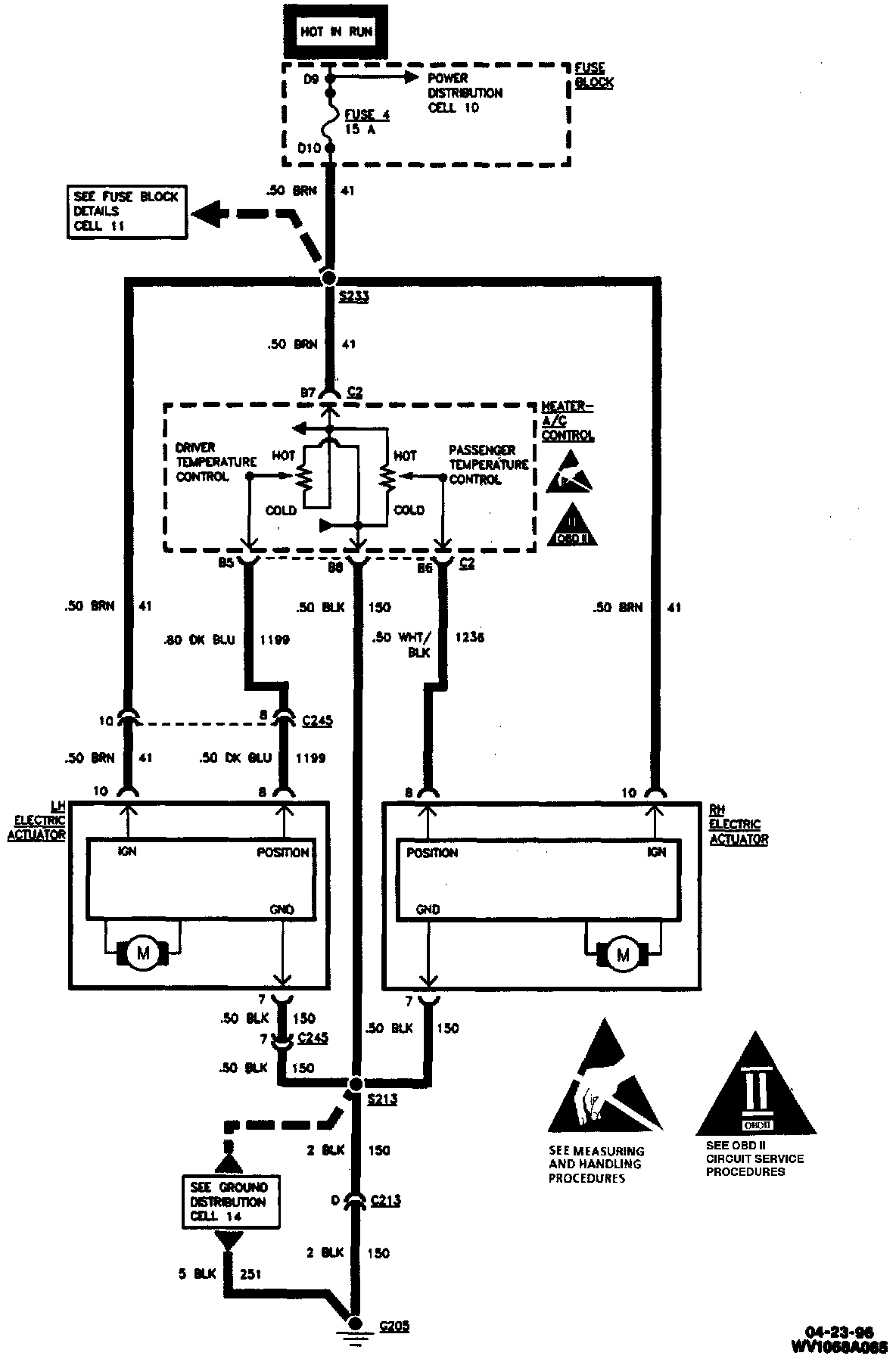

HVAC Air Delivery And Temperature Control (CJ3): Temperature Controls (Dual Zone) (Part 1 Of 2):

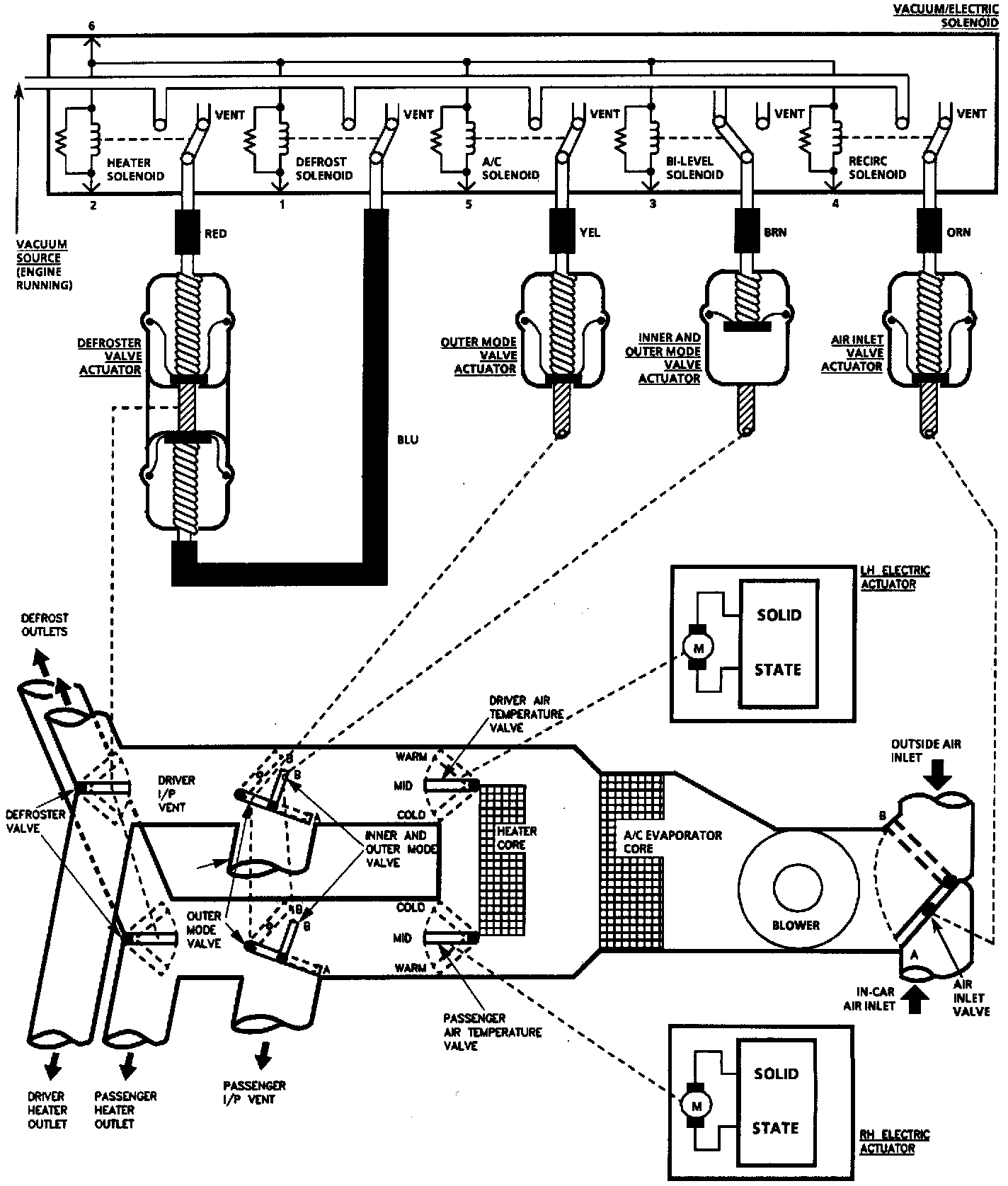

HVAC Air Delivery And Temperature Control (CJ3): Temperature Controls (Dual Zone) (Part 2 Of 2):
