Engine Control Module
>>
Vehicle Control Module (VCM)
>>
C2
>>
W/ A/T, W/ A/C
W/ A/T, W/ A/C

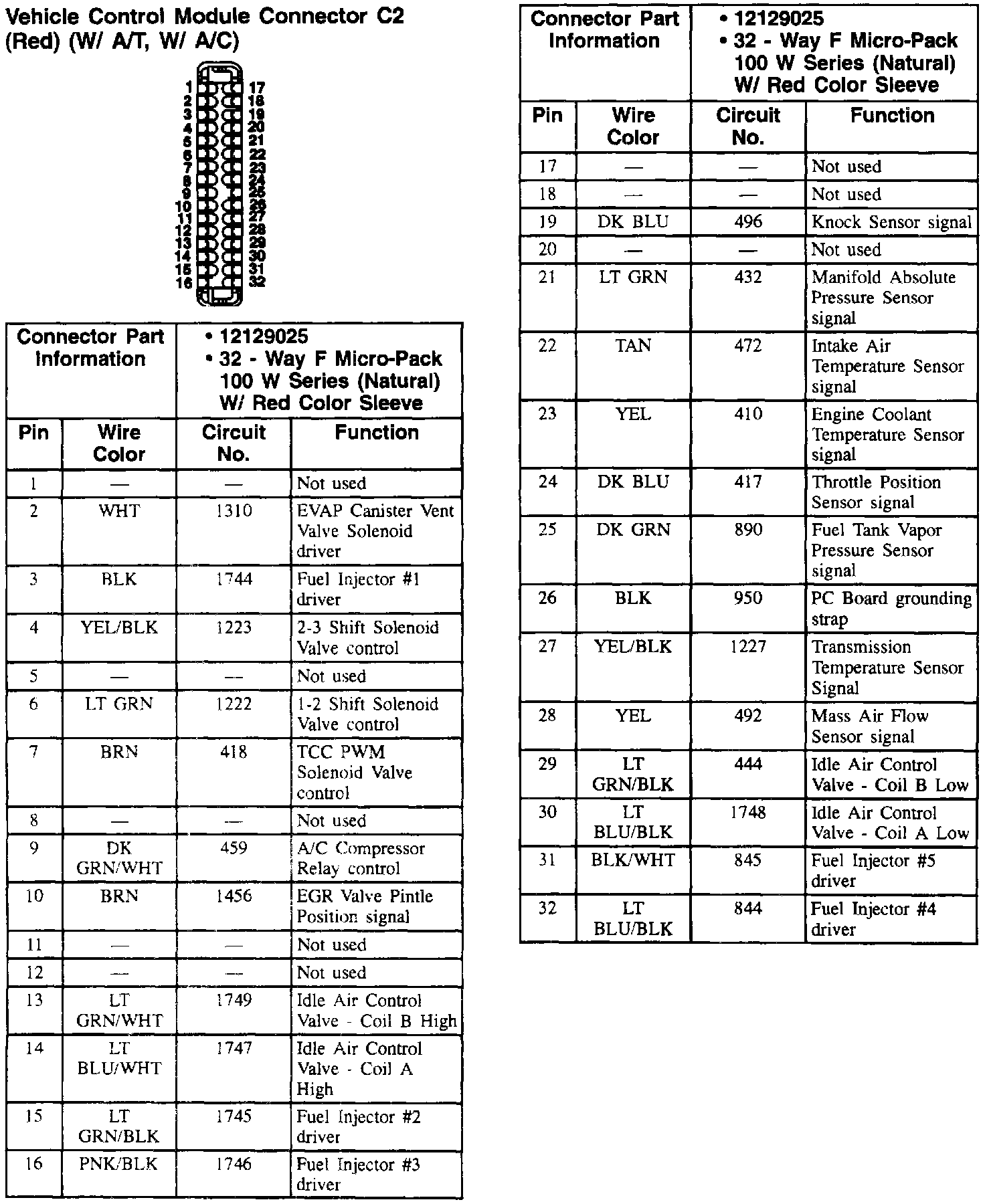

Vehicle Control Module Connector: C2 (W/ A/T, W/ A/C):
