C3 (Clear)
>>
W/ M/T, W/ A/C
W/ M/T, W/ A/C

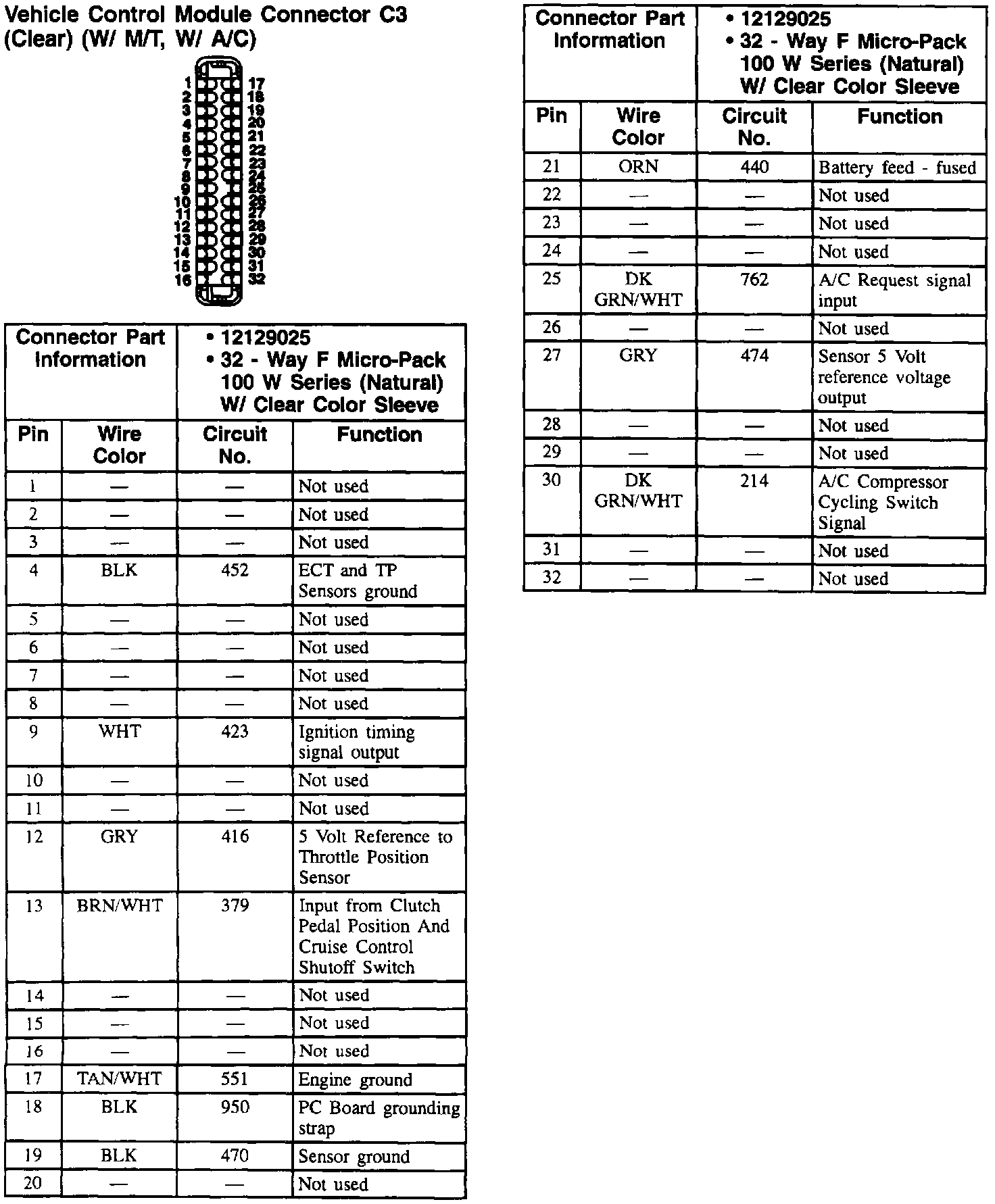

Vehicle Control Module Connector: C3 (Clear) (W/ M/T, W/ A/C):
