Connector Views

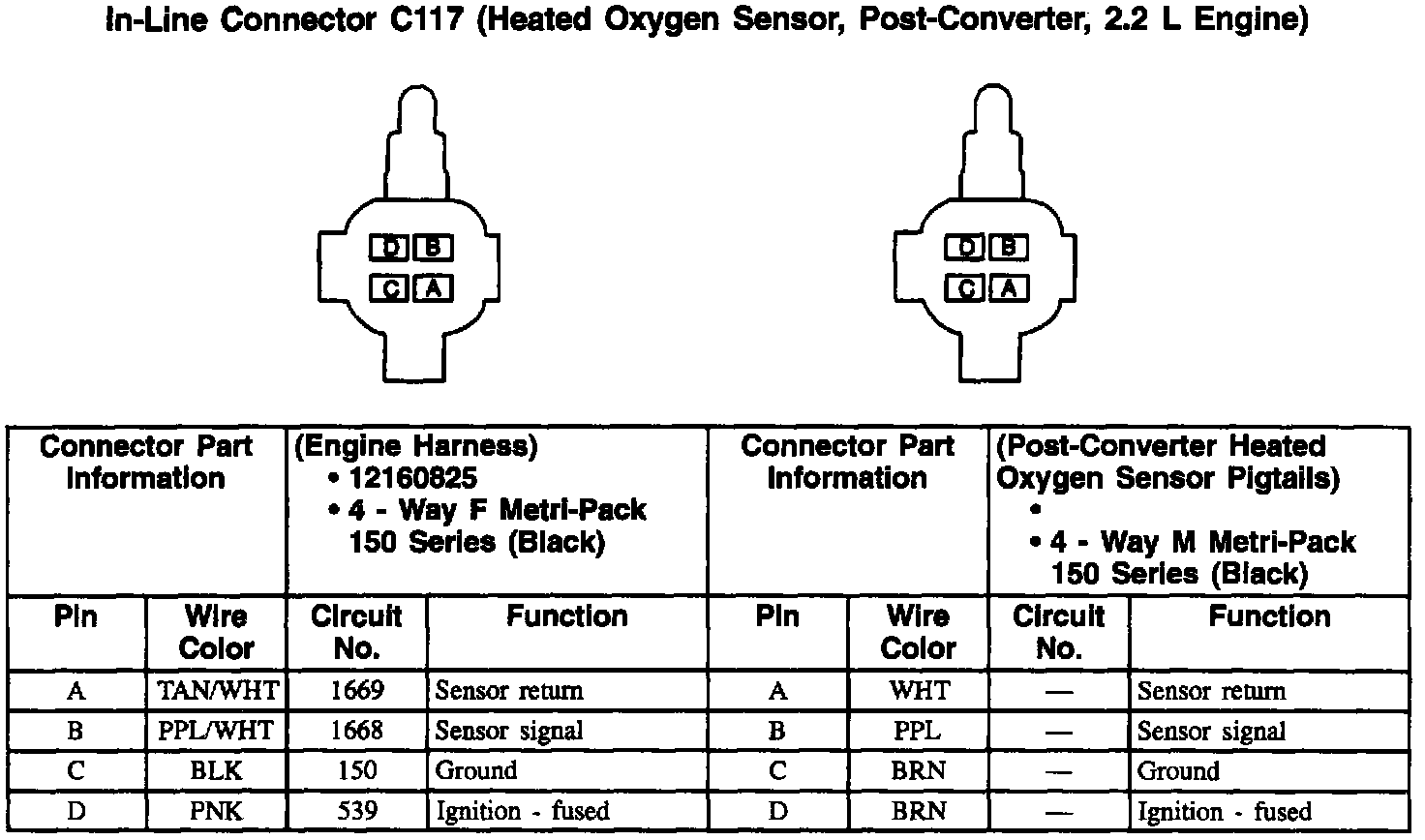

In-Line Connector: C117 (Heated Oxygen Sensor, Post-Converter):

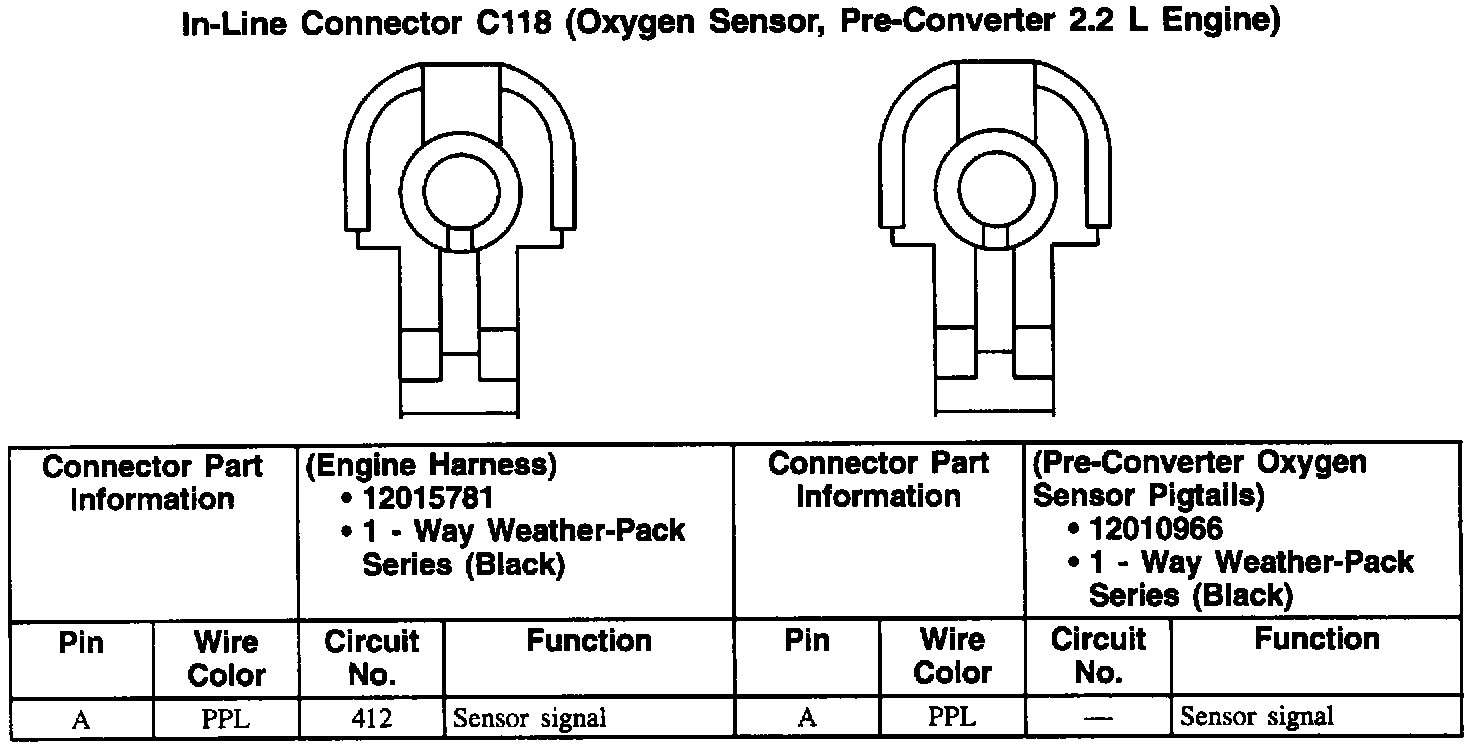

In-Line Connector: C118 (Oxygen Sensor, Pre-Converter):
