Vehicle Control Module (VCM)
>>
C3 (Clear)
>>
W/ A/T, W/O A/C
W/ A/T, W/O A/C

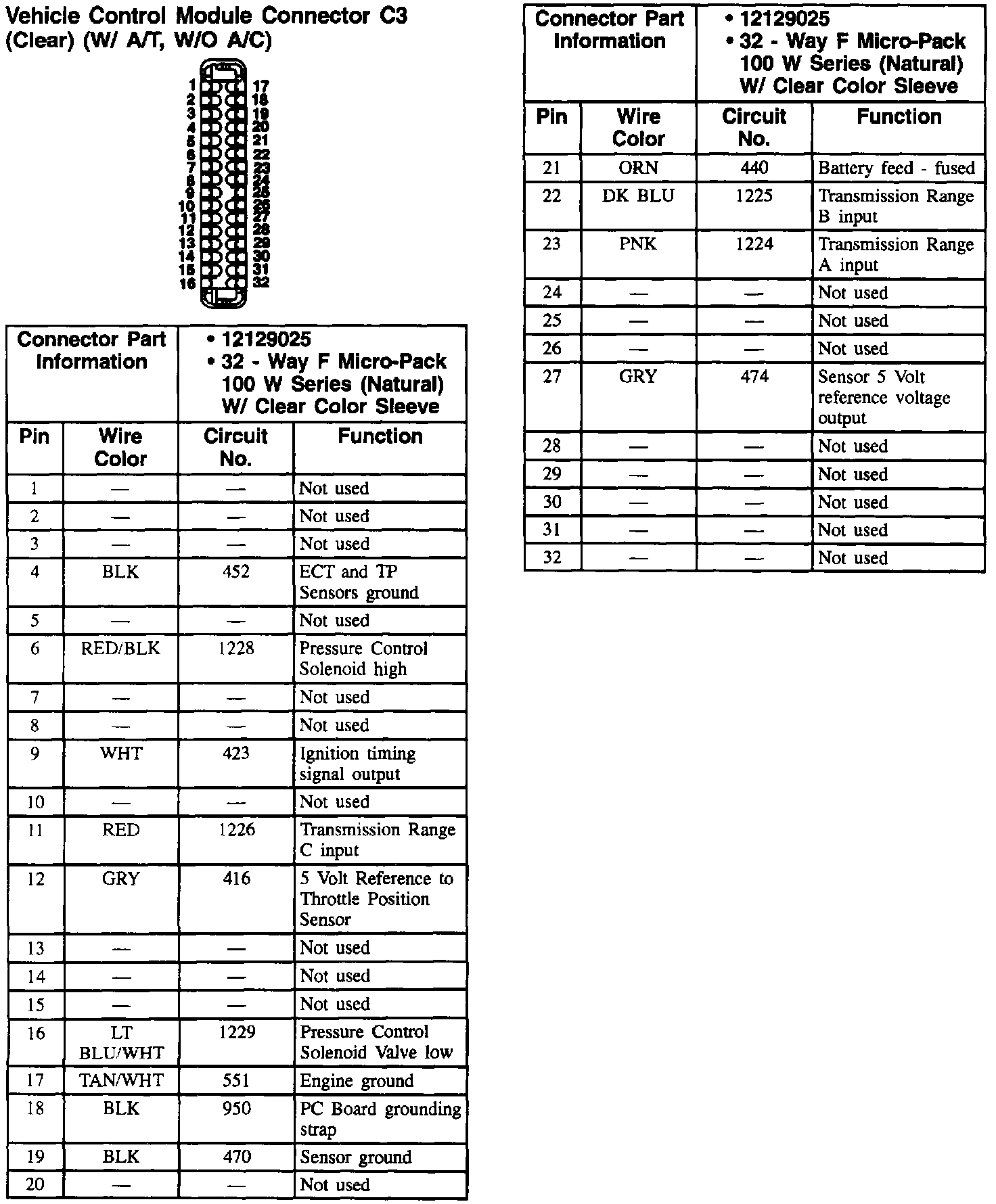

Vehicle Control Module Connector: C3 (Clear) (W/ A/T, W/O A/C):
