Intake Manifold Torque & Sequence

TIGHTENING SPECIFICATIONS

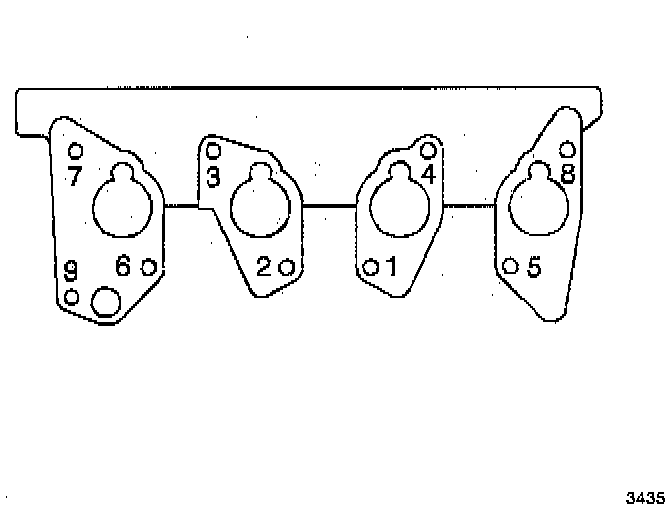

Lower:
Nuts 33 Nm (24 ft. lbs.)
Studs 10 Nm (89 inch lbs.)

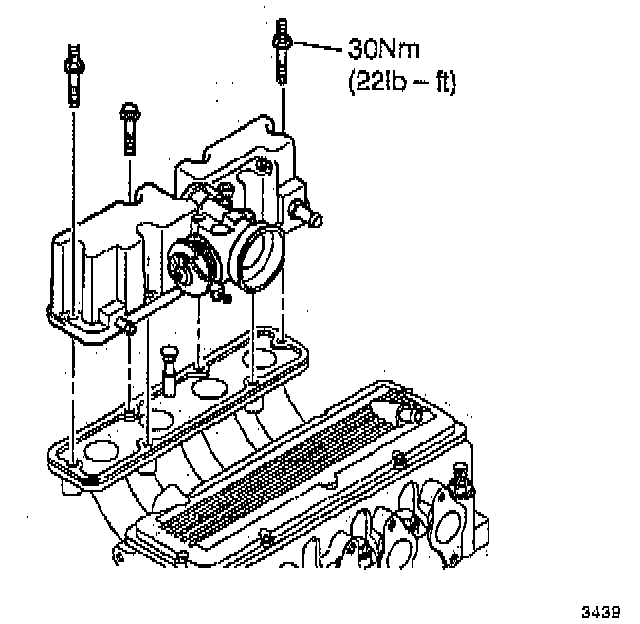

Upper Bolts 30 Nm (22 ft. lbs.)
