Cruise Control Release Switch Replacement

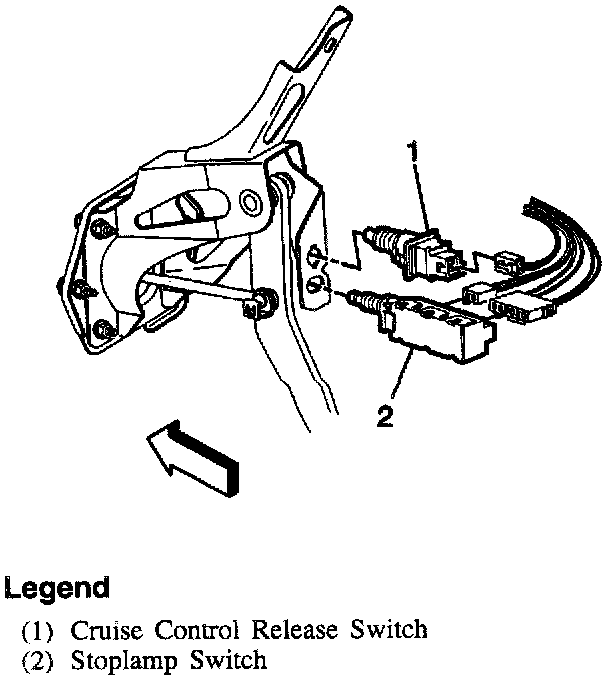

Cruise Control Release Switch And Stoplamp Switch:

CAUTION: Refer to "CAUTION".

REMOVE OR DISCONNECT
1. Left instrument panel insulator.
2. Electrical connector from switch.
3. Switch from retainer in brake pedal bracket by pulling the switch out.

INSTALL OR CONNECT
1. Switch to retainer in brake pedal bracket by pushing the switch in.
2. Electrical connector onto switch.
Adjust
^ Cruise control release switch and stoplamp switch.
