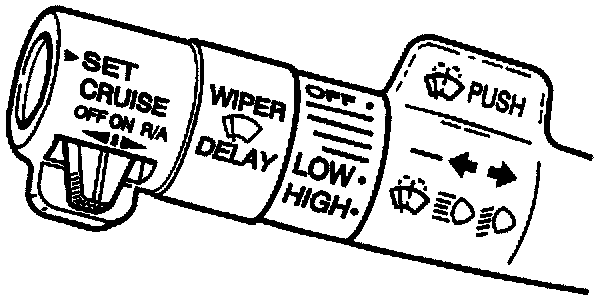

Off-On-R/A Switch

Turn Signal And Multifunction Switch:




The "OFF ON R/A" switch has three positions. The first two switch positions turn the cruise control system "ON" and "OFF". The third switch position has three main functions:
^ RESUME: When the "OFF ON R/A" switch is held in the "R/A" (resume/accelerate) position momentarily, the system will enter the resume mode. The cruise control operation will then return to the last cruise speed setting. The vehicle's speed must exceed 40 km/h (25 mph) at the time of activation.
^ ACCELERATE: When the "OFF ON R/A" switch is held in the "R/A" (resume/accelerate) position for more than one second, the system will enter the accelerate mode. To increase cruise speed, the vehicle must be traveling at least 40 km/h (25 mph) and the "OFF ON R/A" switch held in the "R/A" position until the vehicle reaches the desired cruise speed. When the "OFF ON R/A" switch is released to the "ON" position, the system will maintain the new cruise speed.
^ TAP-UP: Tap-up is a function in which cruise speed can be increased by 2 km/h (1 mph) increments. To do this, the cruise must be engaged and operating. Tap-up is accomplished by pressing the "OFF ON R/A" switch toward the "R/A" position and quickly releasing (tapping) the lever. Do not hold the lever in the "R/A" position or the system will go into the accelerate mode.
