System Diagnosis - Ignition System

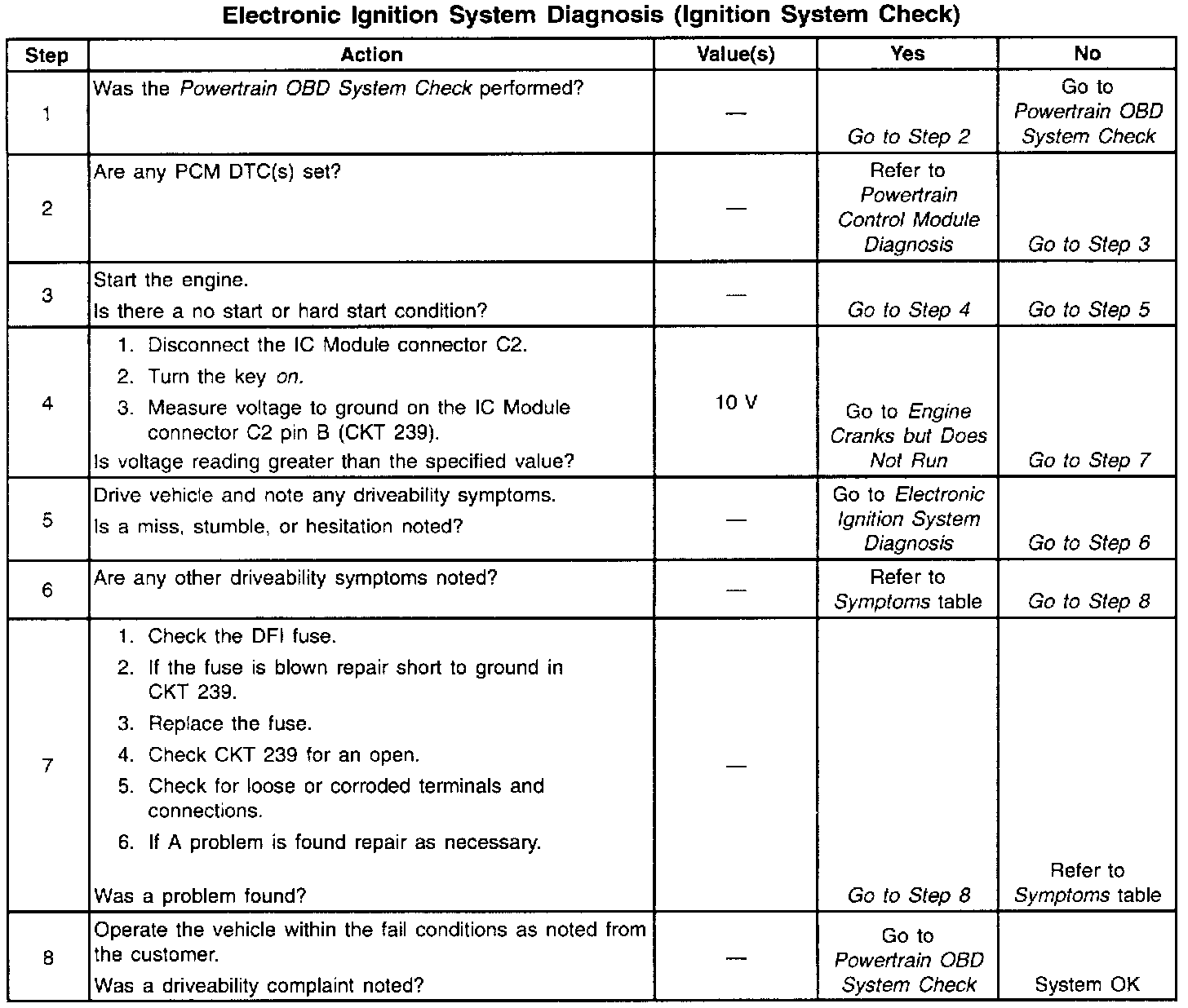

Diagnostic Chart:

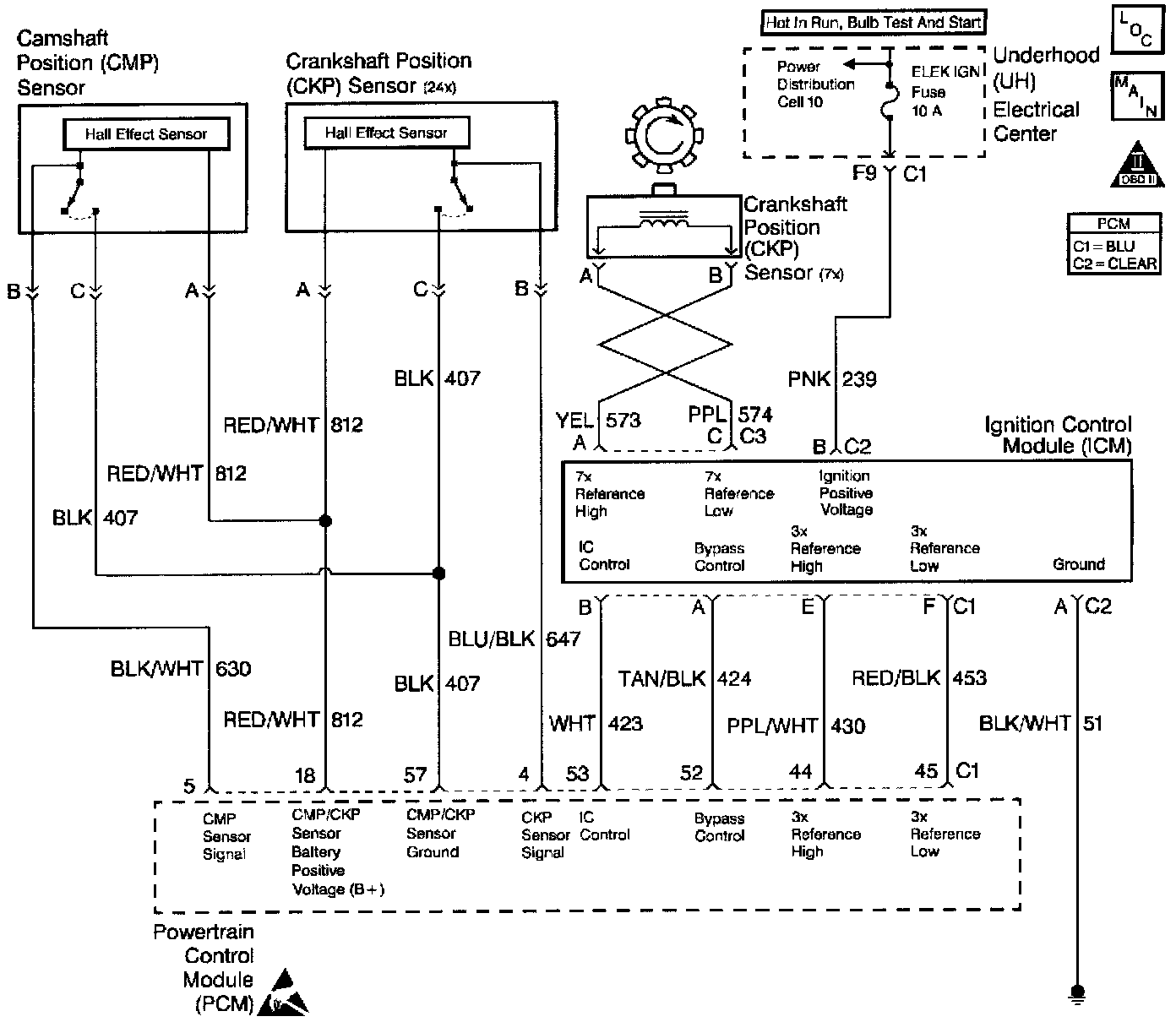

Wiring Diagram:
Circuit DescriptionWhen any condition is suspected to be caused by or related to the
Ignition System, the first step in diagnosis should be to Perform the Powertrain OBD System Check. Refer to Powertrain OBD System Check.
Testing and Inspection
