Ignition Cable: Locations

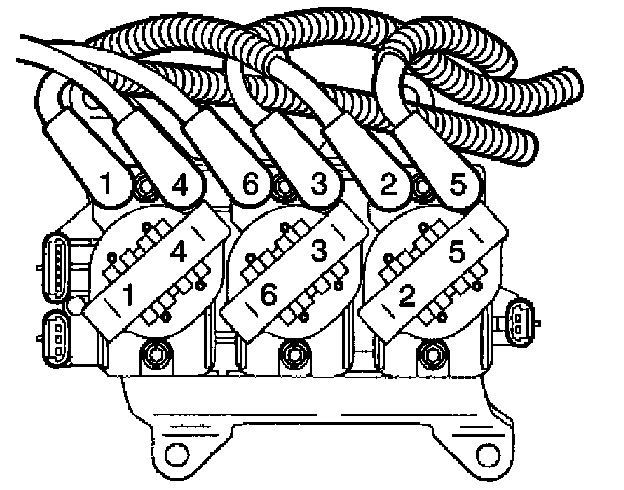

Spark Plug Wire Routing Engine Front View:
Spark Plug Wire Routing Engine Rear View:
