Pinion Clearance Check

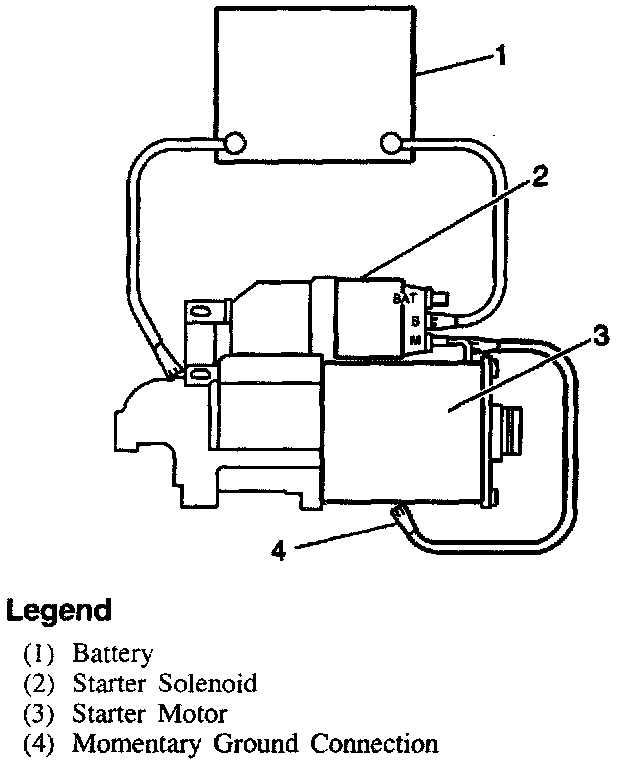

Pinion Clearance Check Electrical Connections:

Pinion Clearance Check:

CAUTION: Refer to "CAUTIONS".

CAUTION: Keep fingers and tools away from opening in Drive End (DE) housing while making electrical connections. The strong shifting action of the solenoid could cause personal injury or damage as the drive pinion moves into cranking position.

1. Secure starting motor in vise or equivalent fixture so that the opening in the Drive End (DE) housing is accessible for measurement.
^ With power supply circuit open, make electrical connections.
^ The battery negative lead must be connected to a clean metal ground on the starter motor housing.
^ Ensure that the motor lead is disconnected and insulated from the solenoid motor terminal.
2. Turn the power supply to the solenoid "S" terminal "ON". This energizes hold-in coil.
3. Momentarily ground solenoid motor terminal to motor housing. This energizes the pull-in coil in the solenoid and causes drive pinion to move into cranking position.
4. Remove ground from the solenoid motor terminal. The drive pinion will stay in the cranking position when the ground is removed.

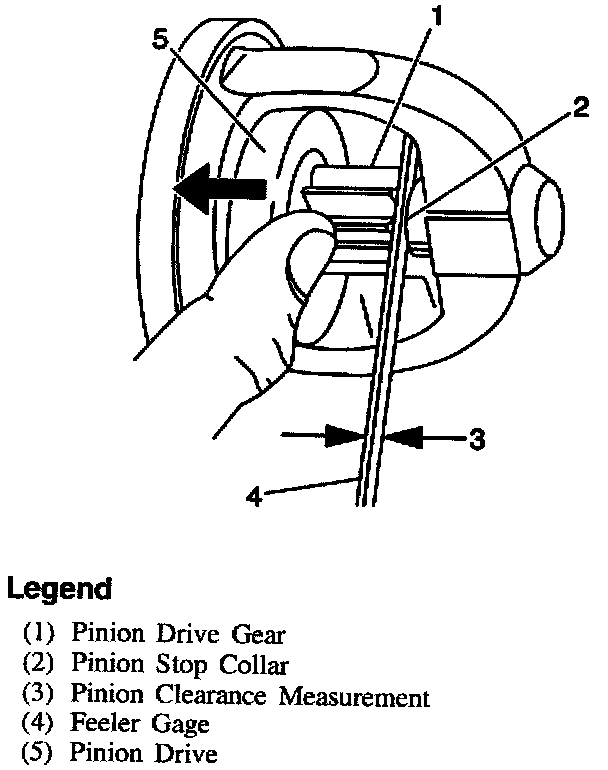

5. Press on drive just enough to take up any free movement of the pinion on the shaft. Use feeler gages to check clearance between end of pinion and pinion stop collar.
Measure
^ Clearance should be 0.25 to 4.06 mm (0.010 to 0.160 in.).
6. After measuring the pinion clearance, turn the power supply switch "OFF."
7. If the clearance is outside specifications replace the starter motor.
8. If the pinion clearance is within specifications, reconnect the motor lead and nut to the starter solenoid.
Tighten
^ Nut to 6 N.m (53 lb. in.).
