Auxiliary A/C System

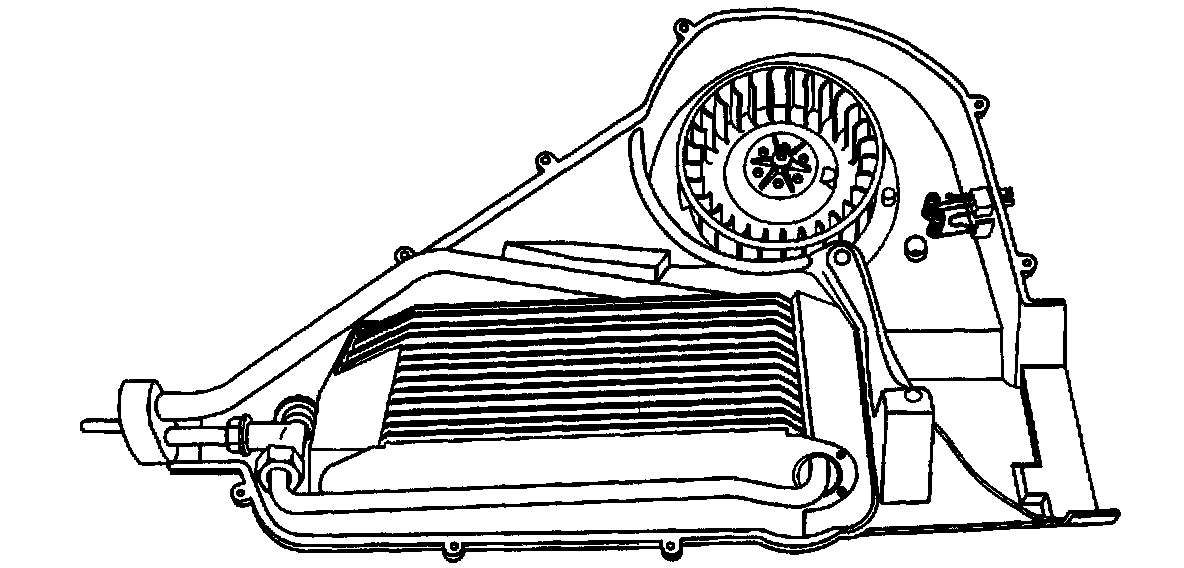

Rear A/C, External View:




Rear A/C, Internal View:






Remove or Disconnect

1. Negative battery cable.
2. Left body side rear trim panel.
3. Cooling tube from case and motor.
4. Two electrical connectors.
5. Five screws retaining motor to case.
6. Blower motor and fan assembly from case.

Install or Connect

1. Blower motor and fan assembly from case.
2. Five screws retaining motor to case.
3. Two electrical connectors.
4. Cooling tube from motor to case.
5. Left body side rear trim panel.
6. Negative battery cable.
