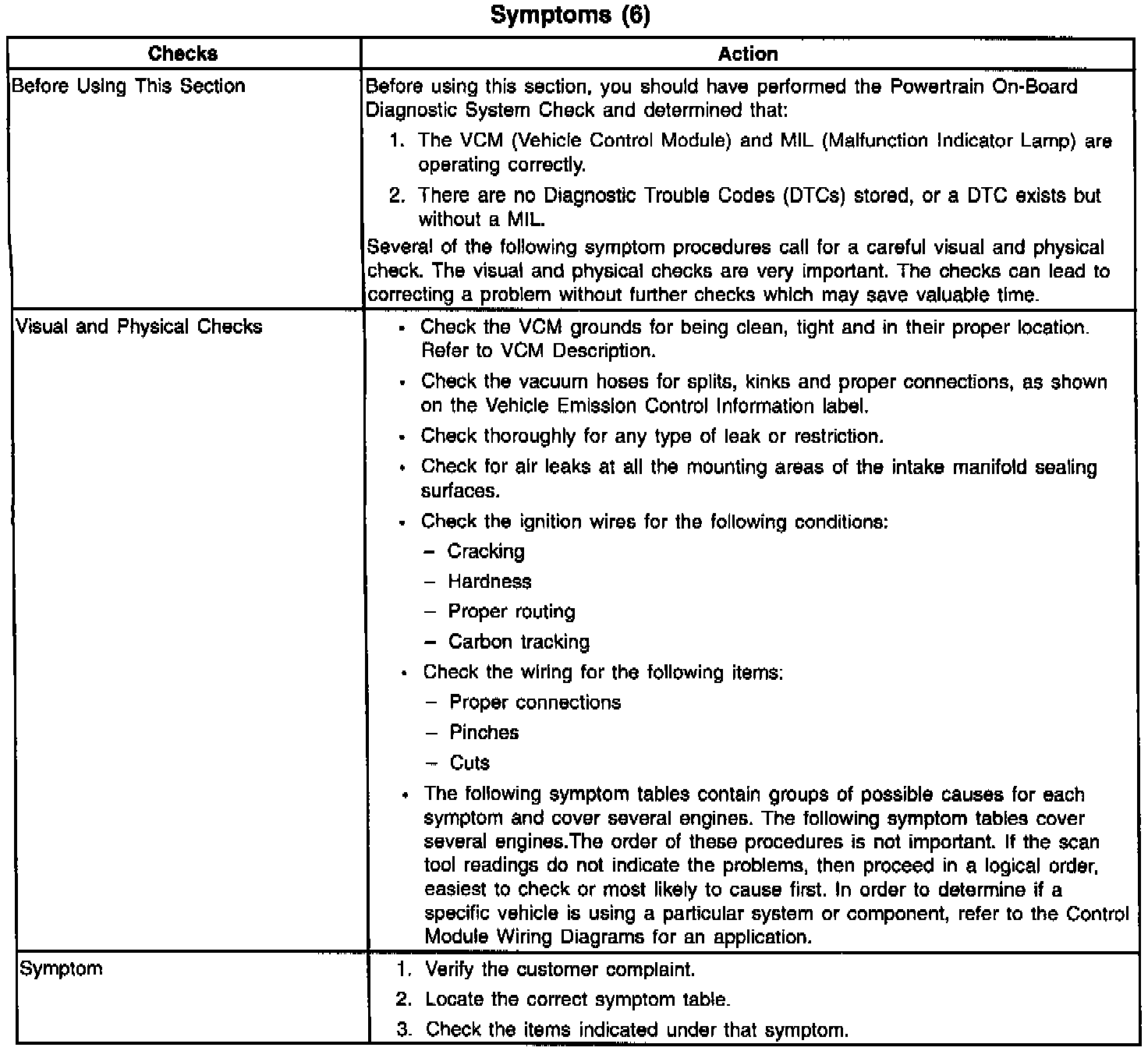

- Important Preliminary Checks

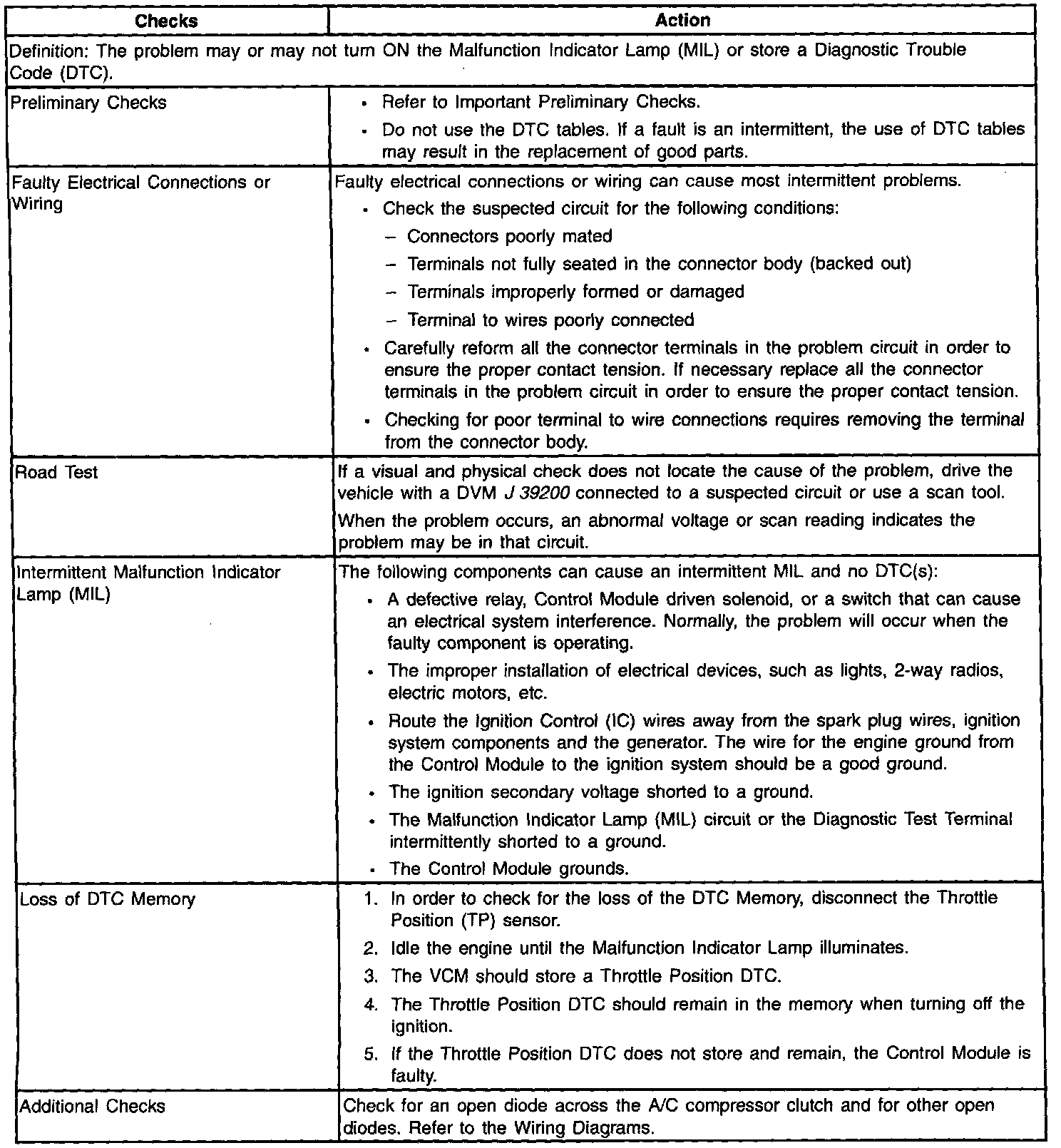

Diagnostic Chart:
Diagnostic Chart:
Use the following tables when diagnosing a symptom complaint.
^
Hard Start
^
Surges/Chuggles
^
Lack of Power, Sluggishness, or Sponginess
^
Detonation/Spark Knock
^
Hesitation, Sag, Stumble
^
Cuts Out, Misses
^
Poor Fuel Economy
^
Rough, Unstable, or Incorrect Idle, Stalling
^
Dieseling, Run-On
^
Backfire
