Sliding Door
REMOVAL PROCEDURETOOLS REQUIRED
J 38778 Door Trim Pad and Garnish Clip Remover

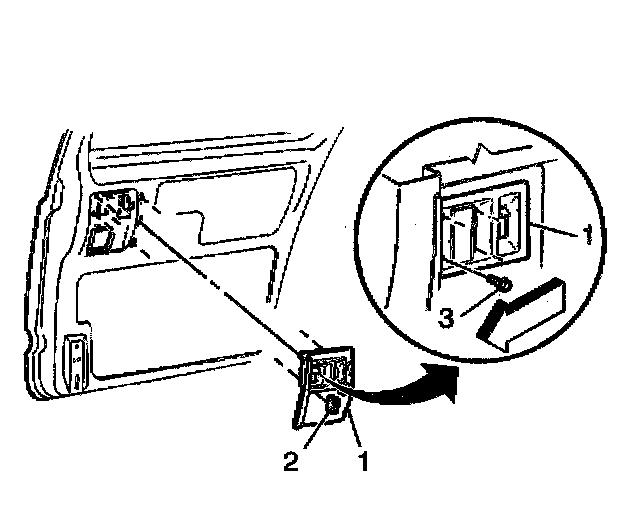

1. Remove the screws that retain the inside handle bezel (1) to the door.
2. Pull in order to disengage the clips (2) and remove the inside handle bezel (1).
3. Remove the garnish molding.
4. Use J 38778 in order to release the fasteners that retain the panel to the vehicle.
INSTALLATION PROCEDURE

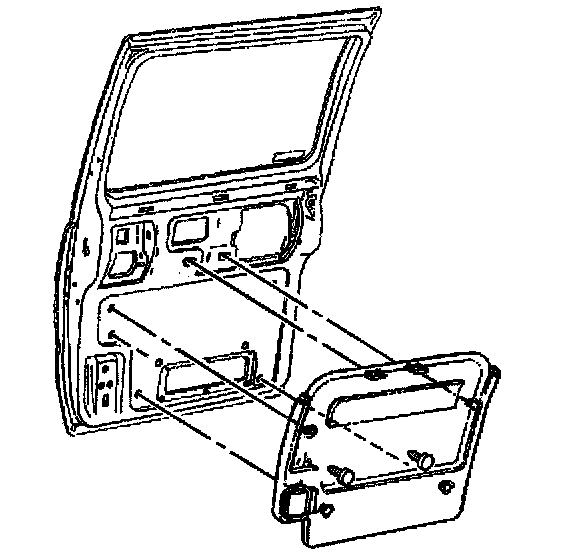

1. Install the trim panel to the door:
1.1. Align the retainers to the holes in the door.
1.2. Press the panel in order to engage the retainers into the door.
2. Press in order to engage the clips (2) and install the inside handle bezel (1).
NOTE: Refer to Fastener Notice in Cautions and Notices.
3. Install the screws (3) that retain the inside handle bezel (1).
Tighten
Tighten the screws that retain the inside handle bezel to 2 N.m (18 lb in).
4. Install the garnish molding.
