Oil Pump Installation
1.

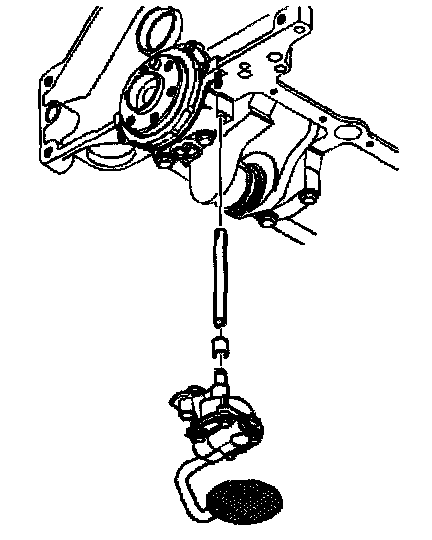

Install the oil pump.
2.
Align the slot in the end of the drive shaft with the drive tang on the oil pump shaft.
3.

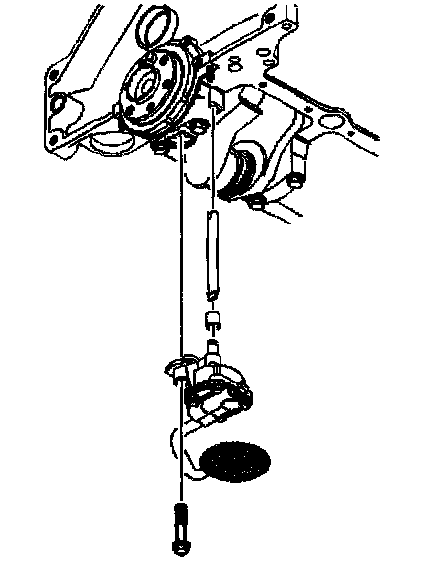

Install the bolt attaching the oil pump to the rear
crankshaft bearing cap.
NOTICE: Refer to Fastener Notice in Service Precautions.
4.
Install the oil pump bolt.
^
Tighten the oil pump bolt to
90 Nm (66 ft. lbs.).
