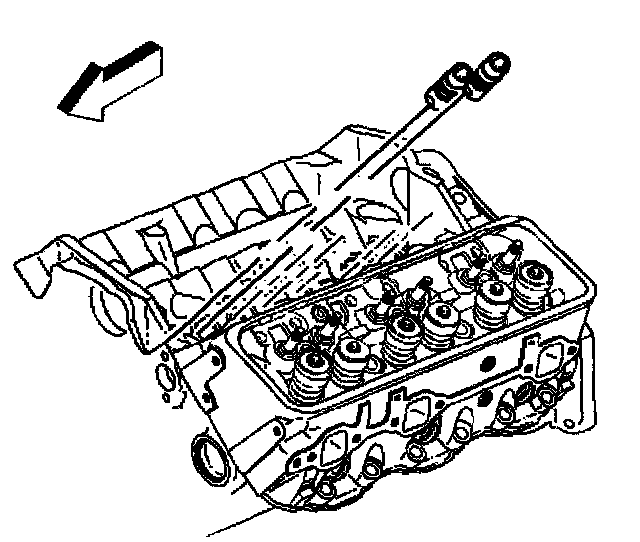

Valve Lifter Installation
1.
Coat the valve lifter rollers with prelube GM P/N 12345501 or equivalent.
2.
If reusing the valve lifters, install in their original location.
3.
Install the valve lifters.
4.
Install the valve lifter
pushrod guides.
^
Tighten the valve lifter
pushrod guide bolts to
16 Nm (12 ft. lbs.). NOTICE: Refer to Fastener Notice in Service Precautions.
