Valve Rocker Arm Cover Installation

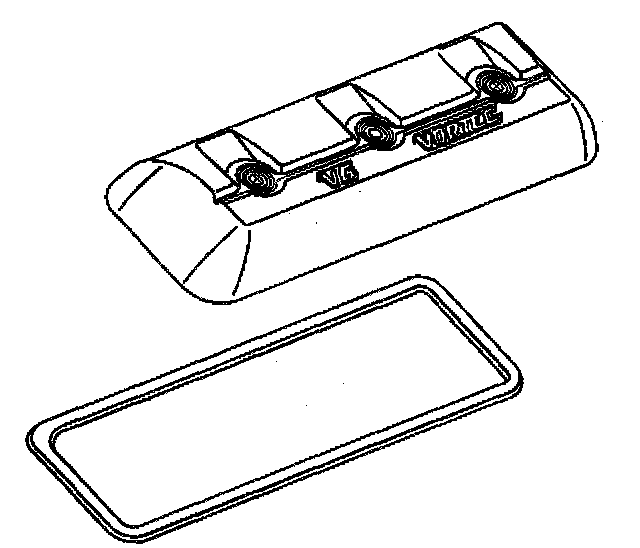

1. Install the NEW valve rocker arm cover gasket into the groove of the valve rocker arm cover.

IMPORTANT: Do not reuse the valve cover gasket or the valve rocker arm cover bolt grommets.,

2. Install the NEW valve rocker arm cover bolt grommets into the valve rocker arm cover.

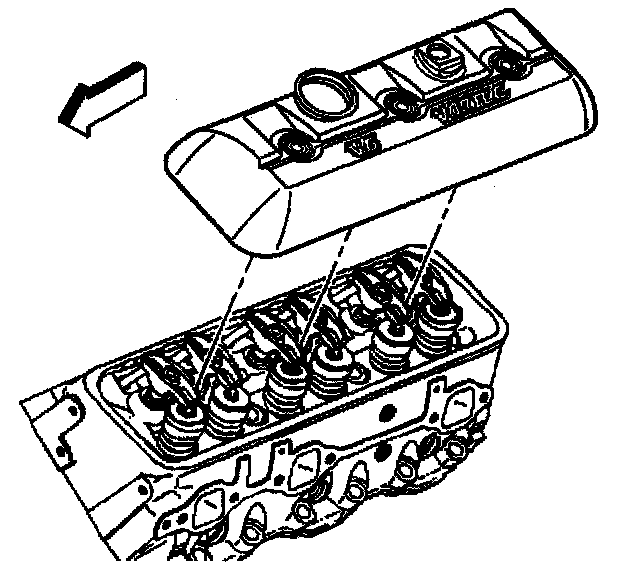

3. Install the valve rocker arm cover onto the cylinder head.

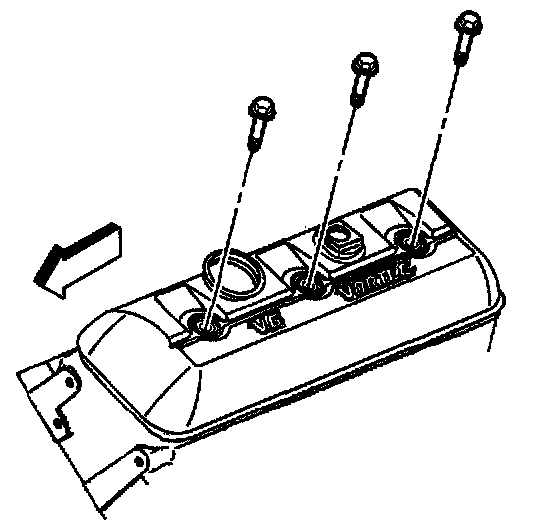

4. Install the valve rocker arm cover bolts.
^ Tighten the valve rocker arm cover bolts to 12 Nm (106 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
