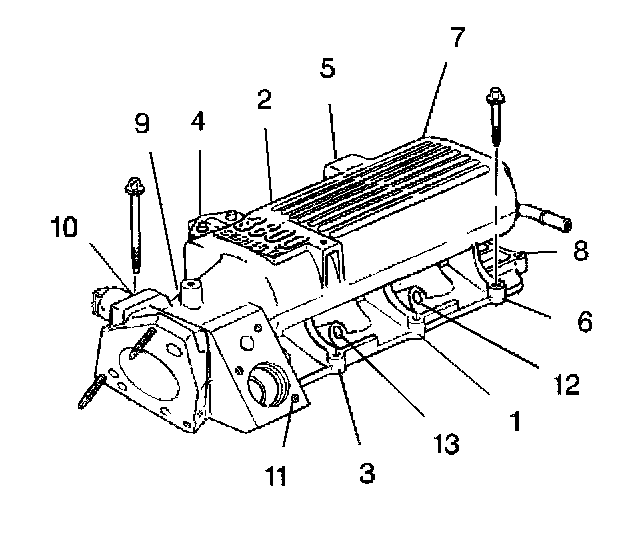

Fastener Tightening Specifications - Upper Intake Manifold
Tighten in sequence the vertical
intake manifold bolts (1-10) to
15 Nm (11 lb ft). Tighten the two water outlet bolts (11) to
27 Nm (20 lb ft). Tighten the side bolts (12, 13) to
30 Nm (22 lb ft).
