Generator Replacement

REMOVAL PROCEDURE




1. Remove the accessory drive belt.

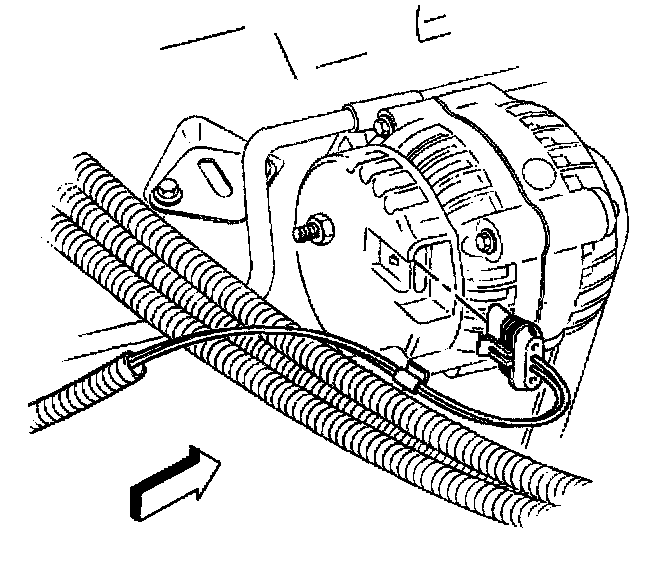

2. Disconnect the generator electrical connector.

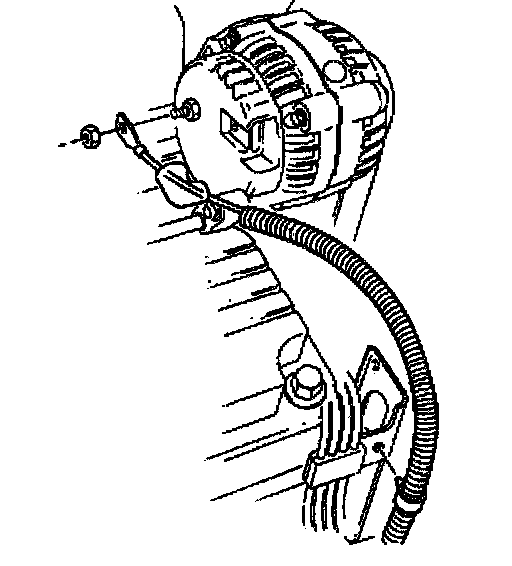

3. Remove the positive cable nut from the generator terminal.
4. Remove the canister purge solenoid.

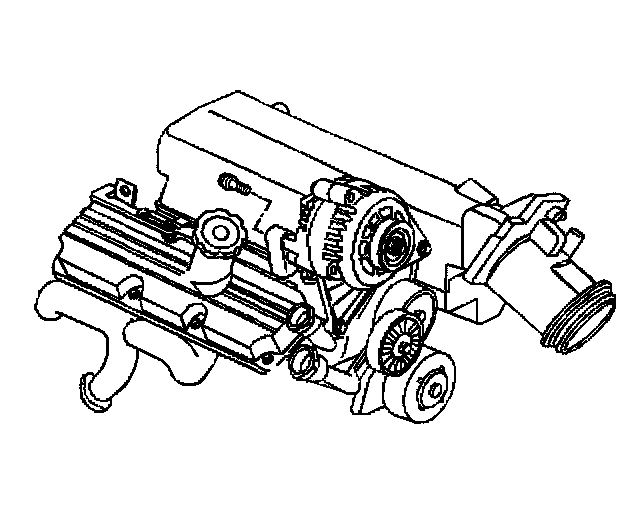

5. Remove the generator rear brace bolt.

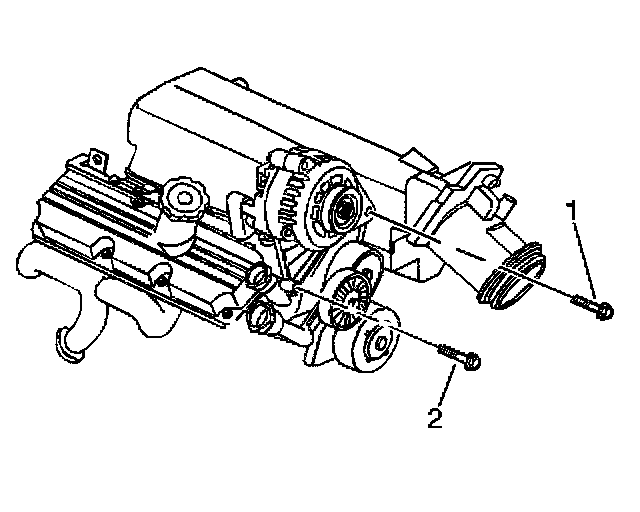

6. Remove the generator bolts (1, 2).
7. Remove the generator from the drive belt tensioner.

INSTALLATION PROCEDURE




1. Install the generator to the drive belt tensioner.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the generator bolts (1, 2).

Tighten
^ Tighten the generator bolt (1) to 30 N.m (22 lb ft).
^ Tighten the generator bolt (2) to 50 N.m (37 lb ft).

3. Install the canister purge solenoid.




4. Install the generator brace bolt.

Tighten
Tighten the generator brace bolt to 30 N.m (22 lb ft).




5. Install the positive cable nut on the generator terminal.

Tighten
Tighten the positive cable nut to generator to 22 N.m (16 lb ft).




6. Connect the generator electrical connector.
7. Install the accessory drive belt.
