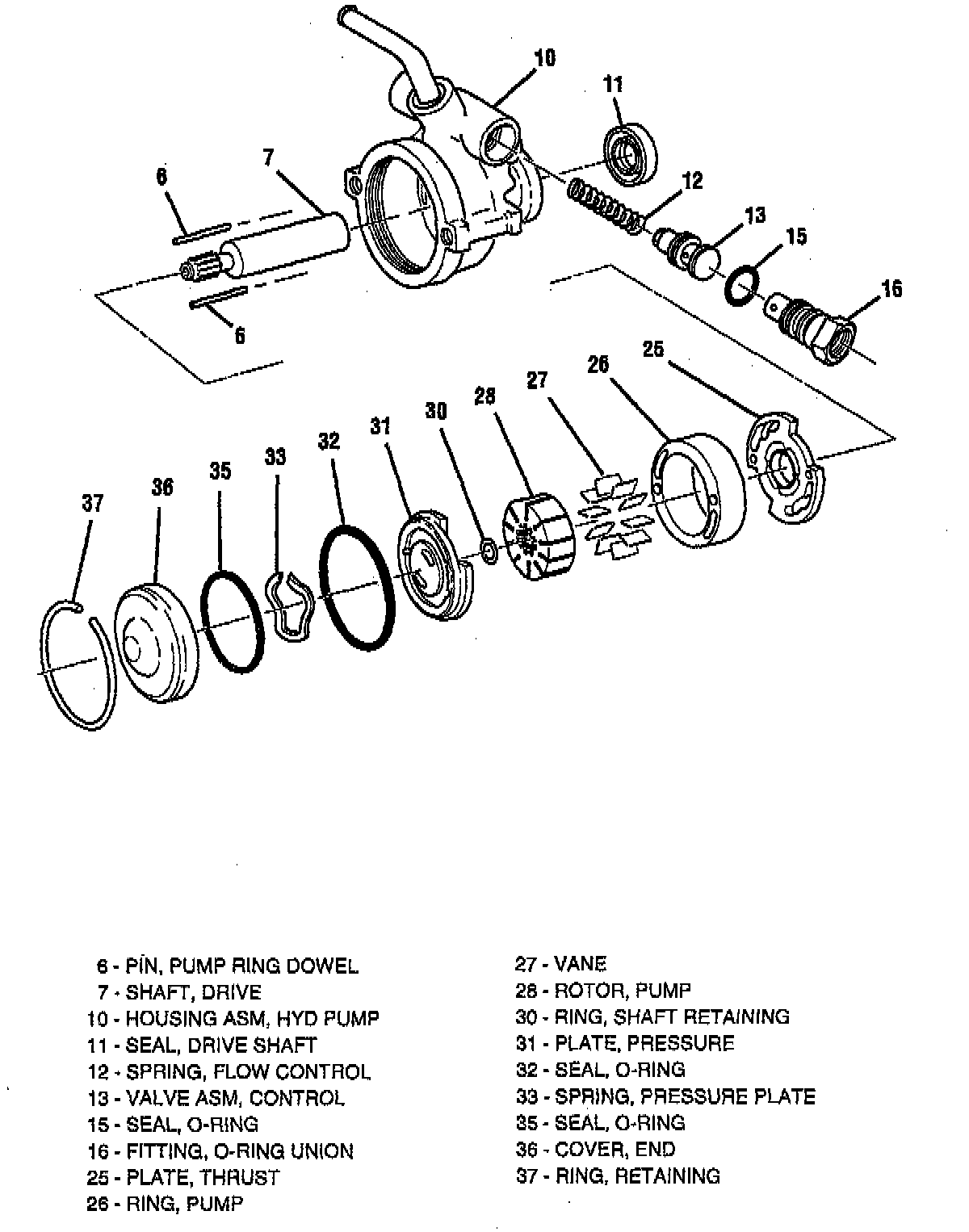

Power Steering Pump
CB Series Reverse Rotation Shown - Others Similar:
Hydraulic Pump Fitting-To-
Power Steering Pump 75 Nm (55 ft. lbs.)
Power Steering Pump:
Bolt/Screw 25 Nm (18 ft. lbs.)
Rear Bracket Bolt/Screw 50 Nm (37 ft. lbs.)
O-Ring Union Fitting (16) 75.0 Nm (55 ft. lbs.)
