Air Inlet (Recirculation) Valve

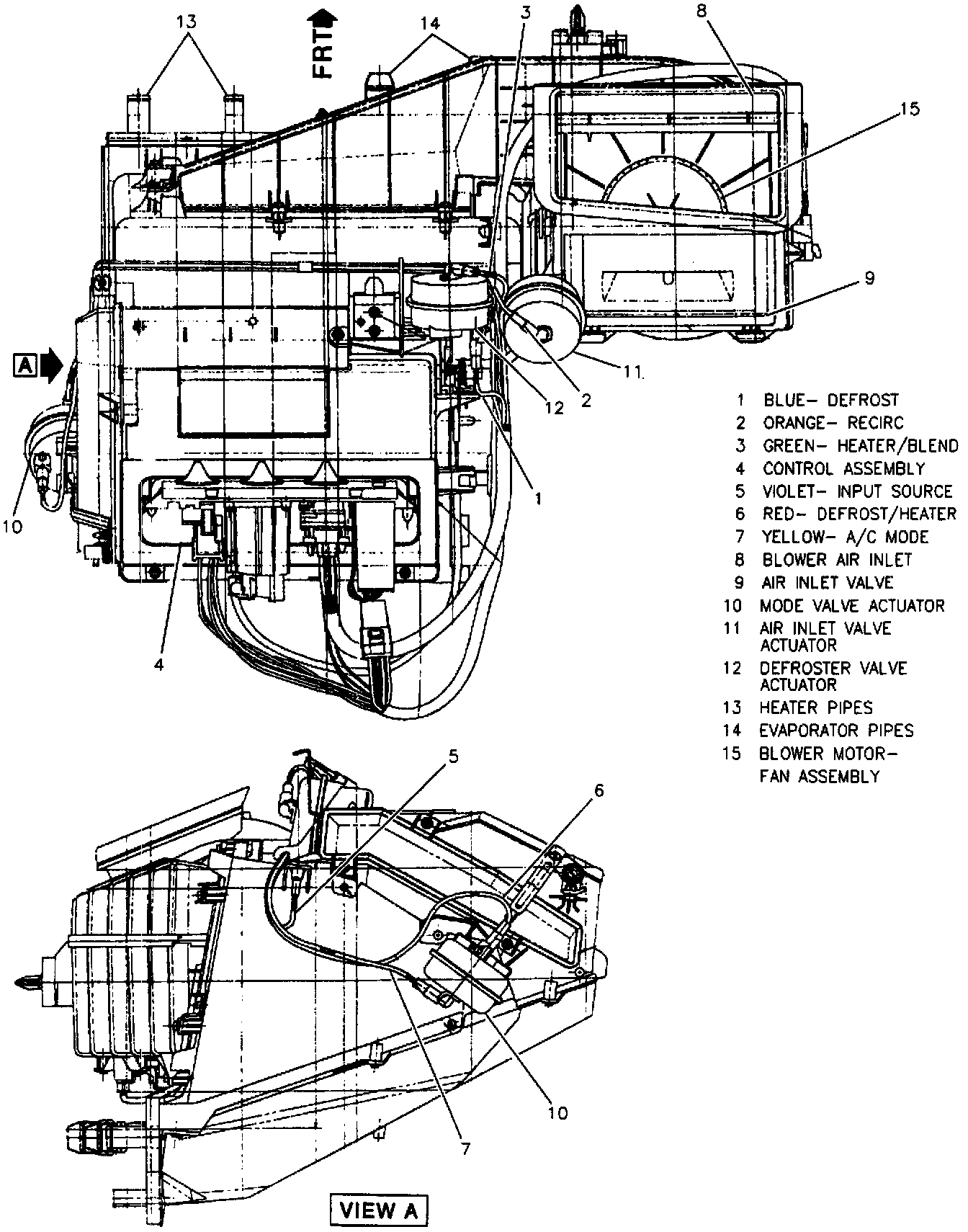

HVAC Module - Top And Left View:






Remove or Disconnect

1. HVAC module from vehicle,
2. Recirculation valve vacuum actuator from module.
3. Recirculation valve inlet housing from module.
4. Recirculation valve from inlet housing.

Install or Connect

1. Recirculation valve to inlet housing.
2. Recirculation valve inlet housing to module.

Tighten
^ Screws to 1 N.m (9 lb in).

3. Recirculation valve vacuum actuator to module.
4. HVAC module to vehicle.
