Instrument Panel - Identification
File In Section: 08 - Body and AccessoriesBulletin No.: 99-08-49-002
Date: March 1999
INFORMATION
Subject:
Instrument Cluster Identification
Models:
1998 Passenger Cars and Trucks (Except Buick Riviera, Cadillac DeVille, Catera, Chevrolet Metro, Prizm, Tracker)
This bulletin is being revised to remove "Broadcast Code" Information for on-line access. Please discard Corporate Bulletin Number 83-83-09 (Section 8 - Chassis/Body Electrical)

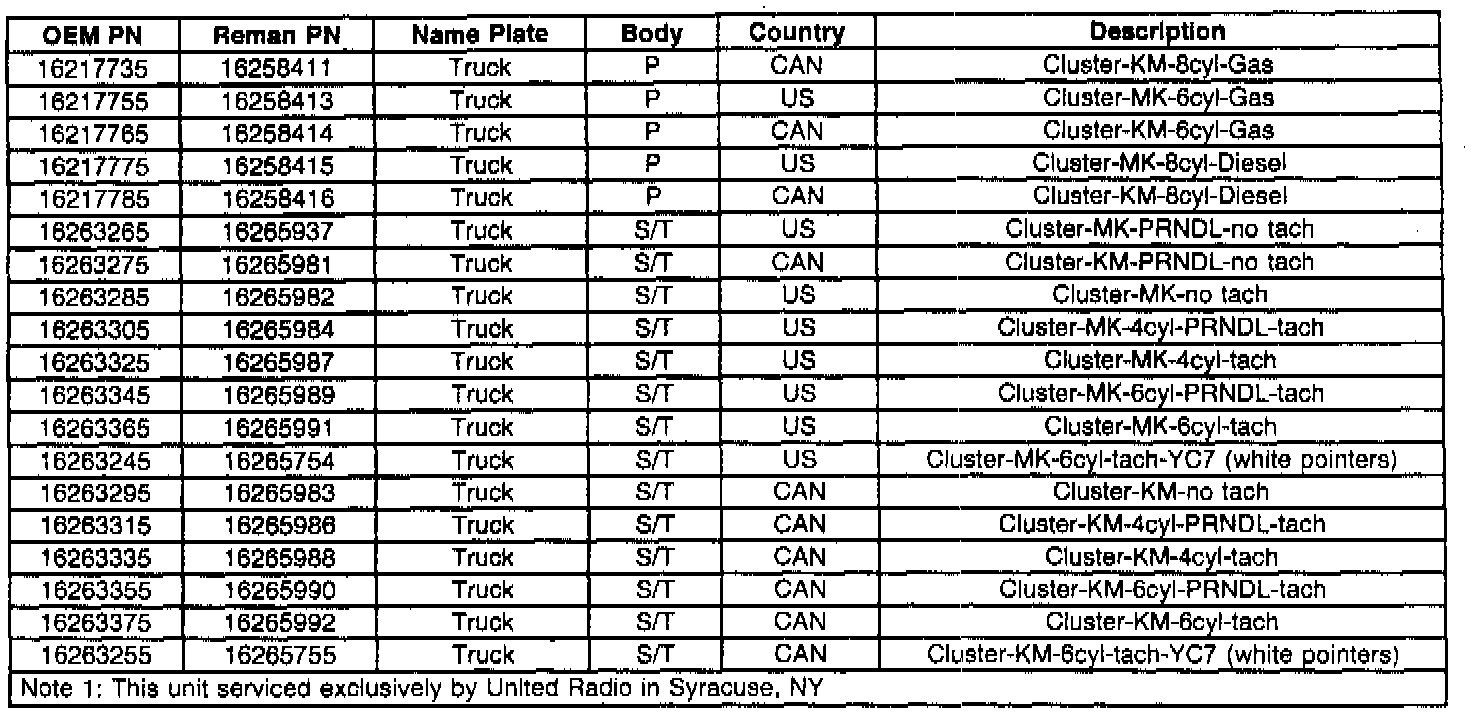

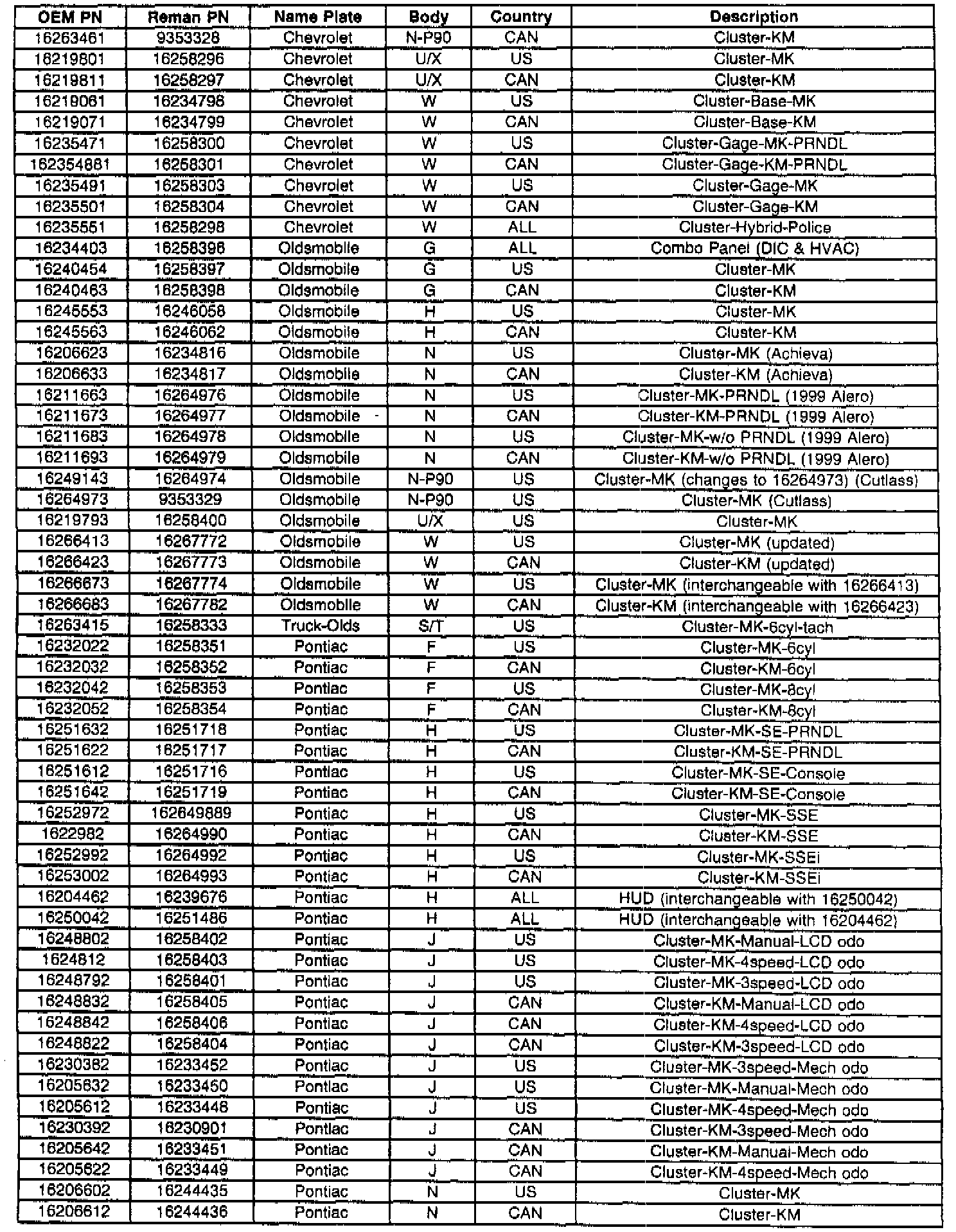

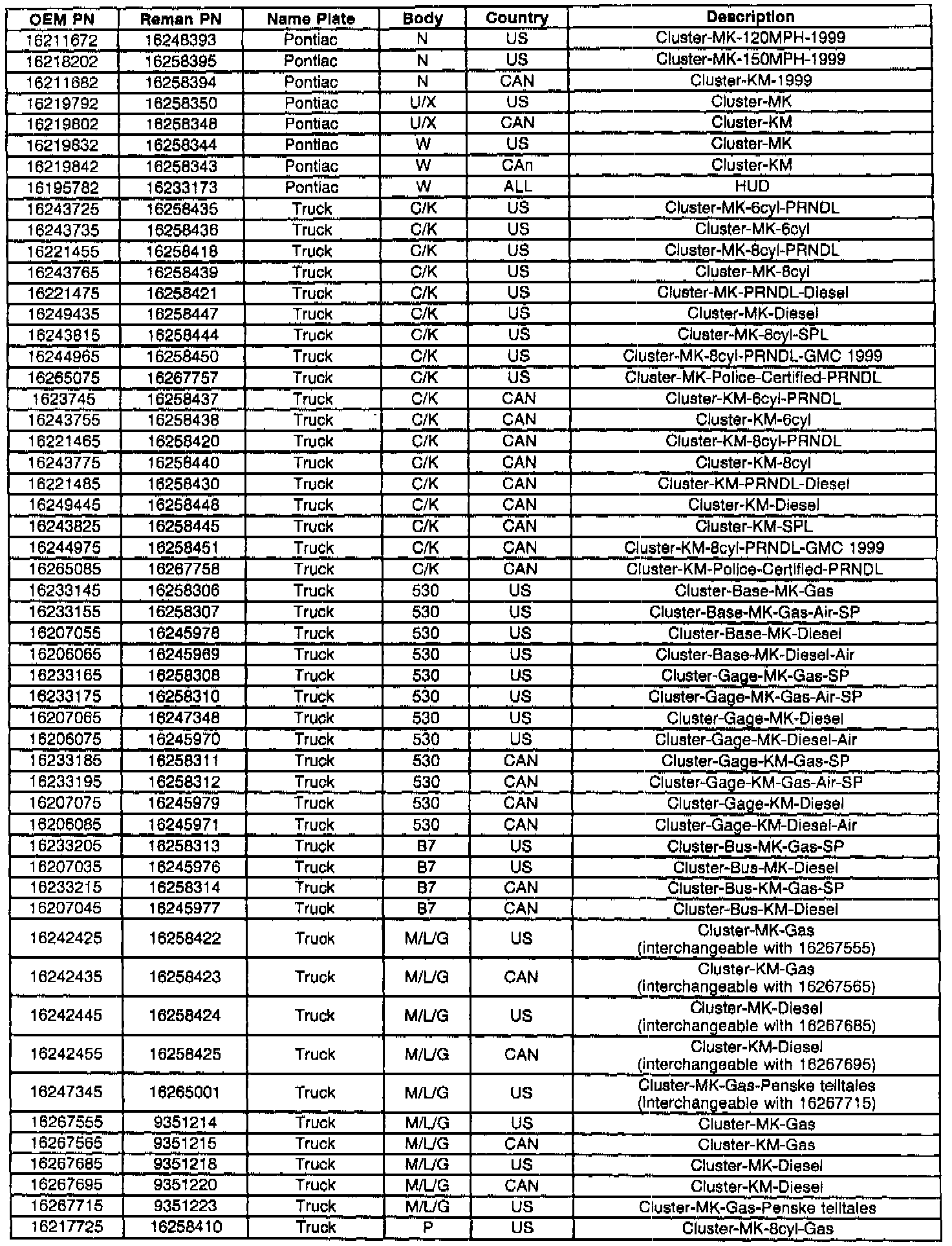

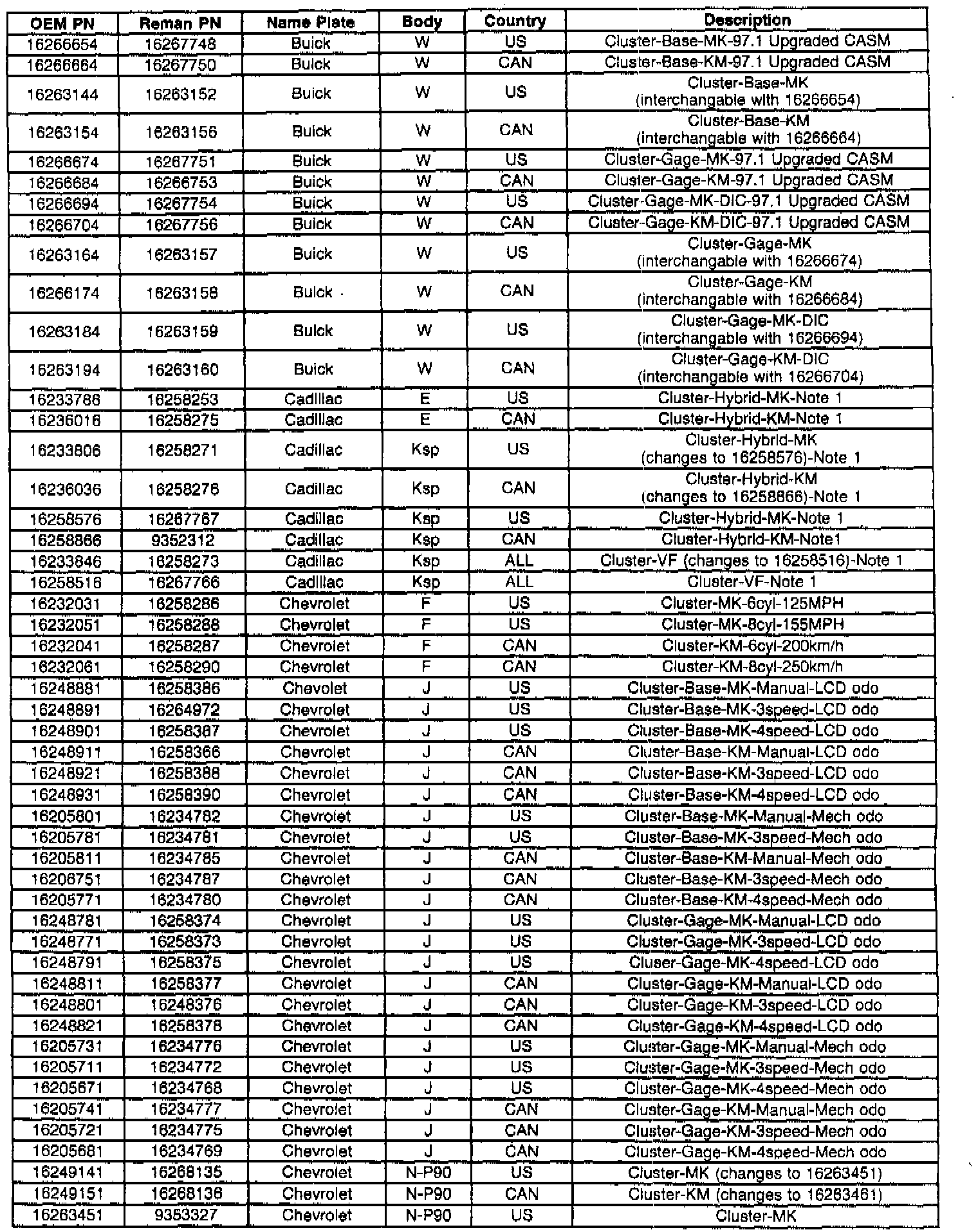

This bulletin provides the instrument cluster identification information for 1998 model vehicles. It is intended to aid Service and Parts Personnel in identifying instrument cluster(s) for replacement. To properly identify the cluster in the vehicle, the cluster will have to be removed before contacting the AC/Delco Service Center. The tables indicate the most current list of instrument and display service centers.
These units are serviced exclusively by AC/Delco Service Centers and the exchange is the complete instrument cluster.
Important:
Chevrolet Corvette replacement instrument cluster part numbers are:
^ U.S. - 10411393
^ Canadian/Export - 10411394
These clusters are not part of the pre-exchange program. They can be purchased from an AC/Delco service center with mileage preset.
Parts Information
Parts are currently available from GMSPO.
