b. Input Shaft Disassemble

^ Tools Required
- J 22912-01 Split Plate

CAUTION: When handling parts that have been preheated for Installation purposes, always wear leather welding gloves with a minimum amount of handling time. If this precaution is not observed, severe skin burns or personal injury may result.

IMPORTANT: Heat the input shaft, collar and the stopper plate in an approved preheat oven to approximately 95°C (200°F) just prior to removal. DO NOT use an acetylene torch or other open flame. Always allow the preheated parts to cool after removal. DO NOT quench the preheated parts with water. Use compressed air in order to help cool any preheated parts.

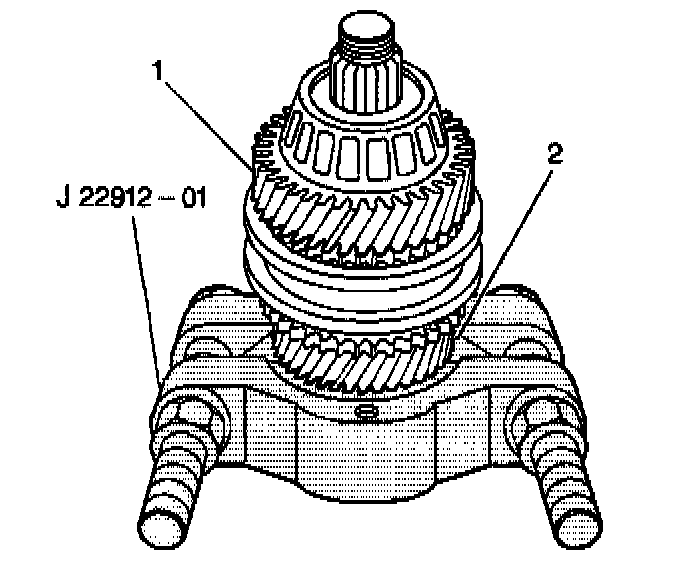

1. Remove the following items as an assembly using the J 22912-01 (inverted) and a press:
^ The rear bearing
^ The 4th gear
^ The 3rd/4th synchronizer assembly
^ The 3rd gear

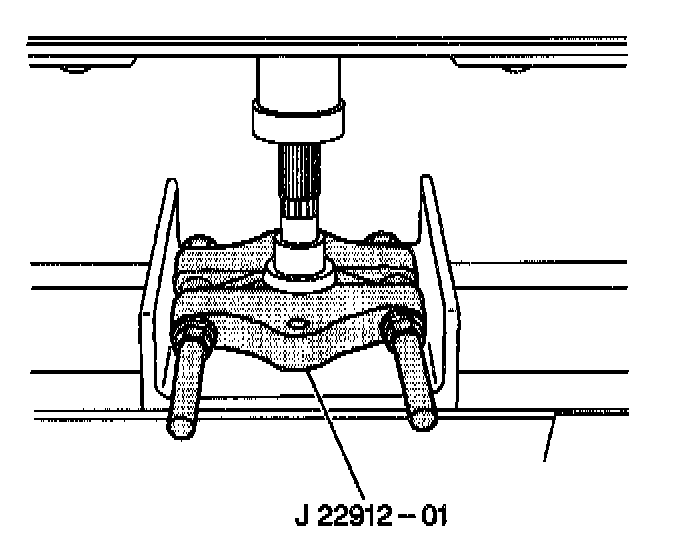

2. Remove the collar and the stopper plate. Use a J 22912-01 (inverted) with a press. Discard the collar and the stopper plate.
