Power Mirror Switch: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Protect the trim panel with a rag when prying up the switch to prevent marring the trim panel.

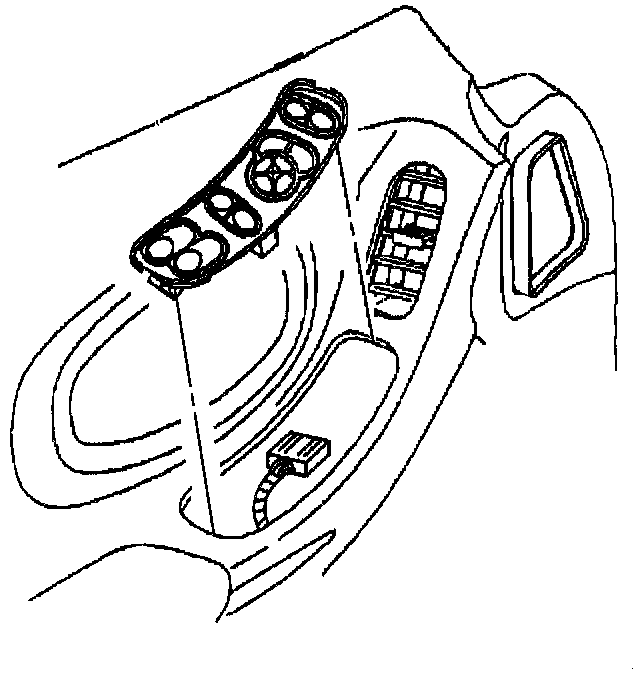

Power Mirror Switch Replacement: Removal Procedure:




1. Pry up the rear edge of the left door switch assembly.
2. Slide the switch assembly rearward.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE

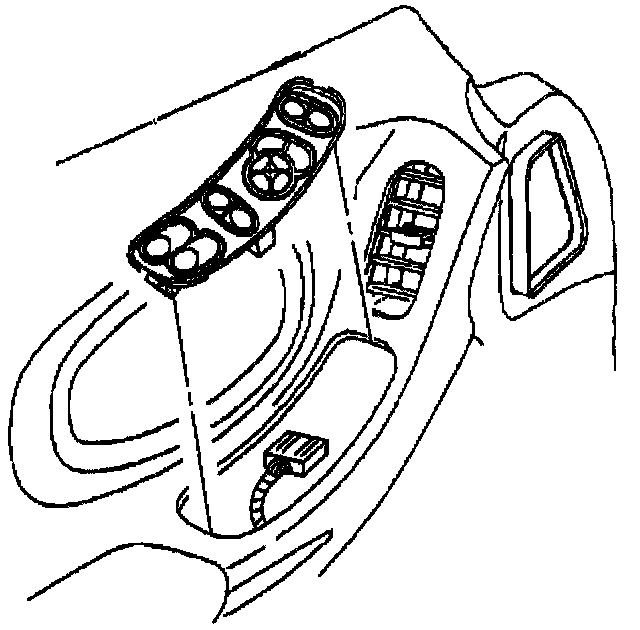

Power Mirror Switch Replacement: Installation Procedure:




1. Connect the electrical connector to the switch.
2. Insert the front edge of the switch into the door trim panel.
3. Press the rear edge of the switch into the trim panel to secure.
