Memory Seat Module Replacement

REMOVAL PROCEDURE

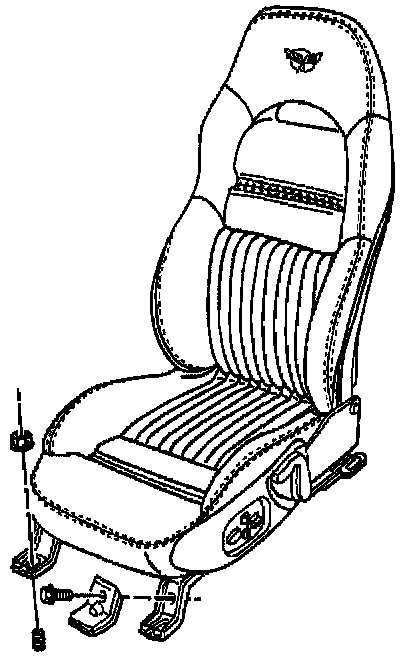

Memory Seat Module Replacement - Removal Procedure:




1. Remove the seat.

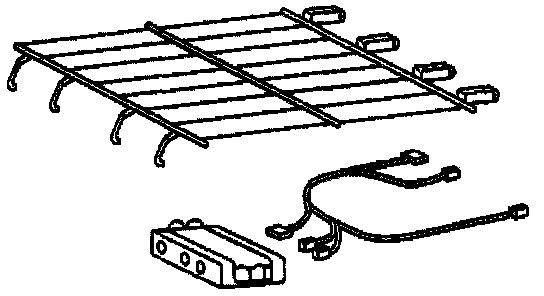

Memory Seat Module Replacement - Removal Procedure:




2. Remove the memory seat control module from the seat foam support wires.
3. Reposition the memory seat control module out through the opening.
4. Disconnect the harness connectors.

INSTALLATION PROCEDURE

Memory Seat Module Replacement - Installation Procedure:




1. Connect harness connectors to the memory seat control module.
2. Install the memory seat control module to the seat cushion foam support wires.

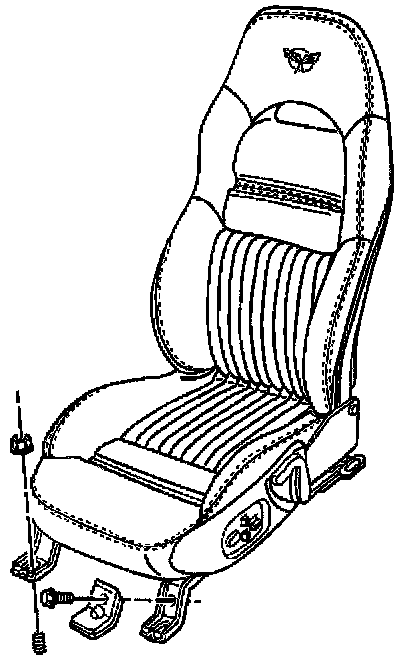

Memory Seat Module Replacement - Installation Procedure:




3. Install the seat.
