Cruise Release Switch Replacement

REMOVAL PROCEDURE

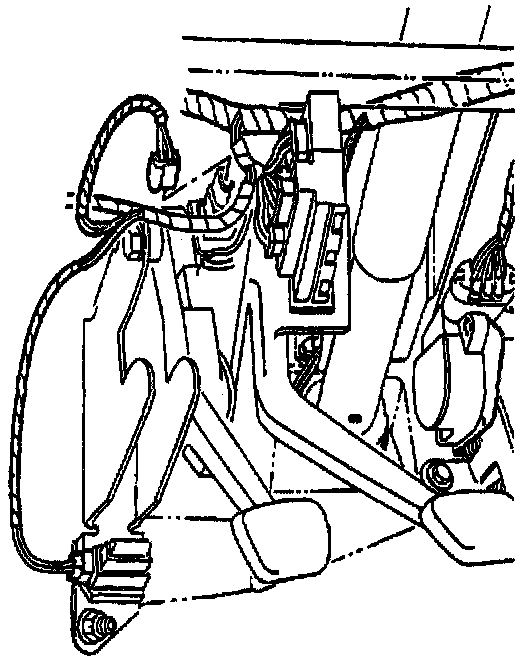

Cruise Release Switch Replacement: Removal Procedure:




1. Remove the LH I/P lower insulator panel.
2. Disconnect the cruise control release switch electrical connector.

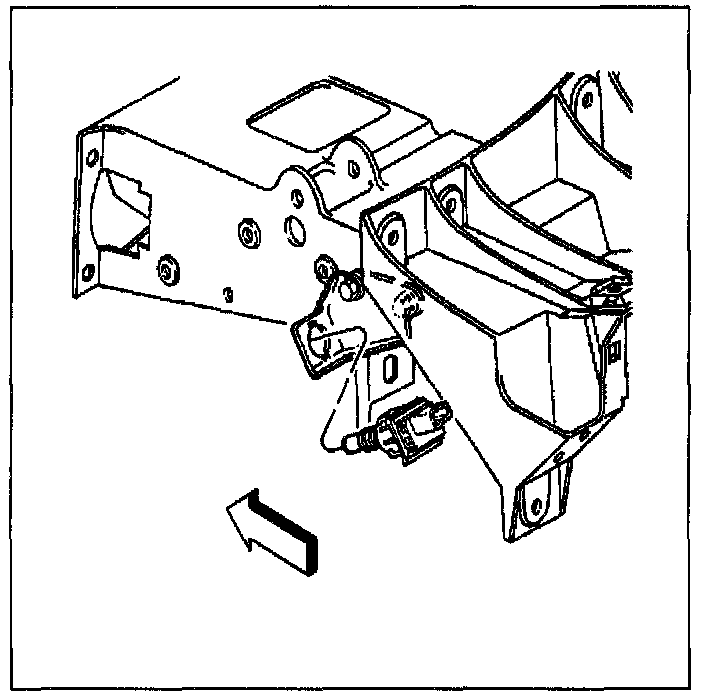

Cruise Release Switch Replacement: Removal Procedure:




3. Remove the cruise control release switch from the cruise control release switch bracket.

INSTALLATION PROCEDURE

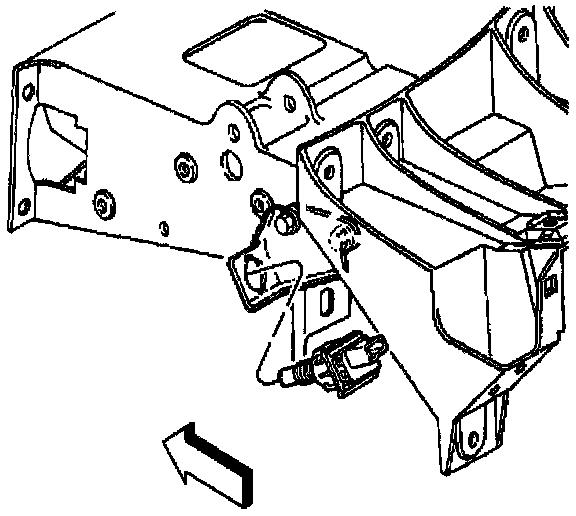

Cruise Release Switch Replacement: Installation Procedure:




1. Install the cruise control release switch to the switch bracket.

Fully seat the switch to the bracket; audible clicks will be heard while pushing the switch.

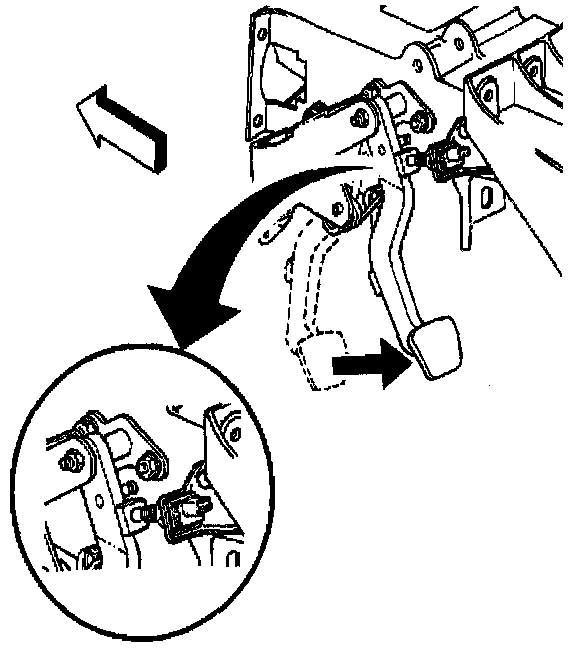

Cruise Release Switch Replacement: Installation Procedure:




2. Connect the cruise control release switch electrical connector.

Cruise Release Switch Replacement: Installation Procedure:




3. Adjust the cruise control release switch. Grasp the clutch pedal and pull fully rearward against the pedal stop; audible clicks may be heard as the switch moves into the adjusted position.
4. Install the LH I/P lower insulator panel.
