Unit Repair

REMOVAL PROCEDURE

^ Tools Required
- J 33049 Crankshaft Sprocket Removal Tool
- J 41666 Crankshaft Sprocket Installer






1. Remove the oil pump.
2. Rotate the crankshaft until the timing marks on the crankshaft and camshaft sprockets are aligned.

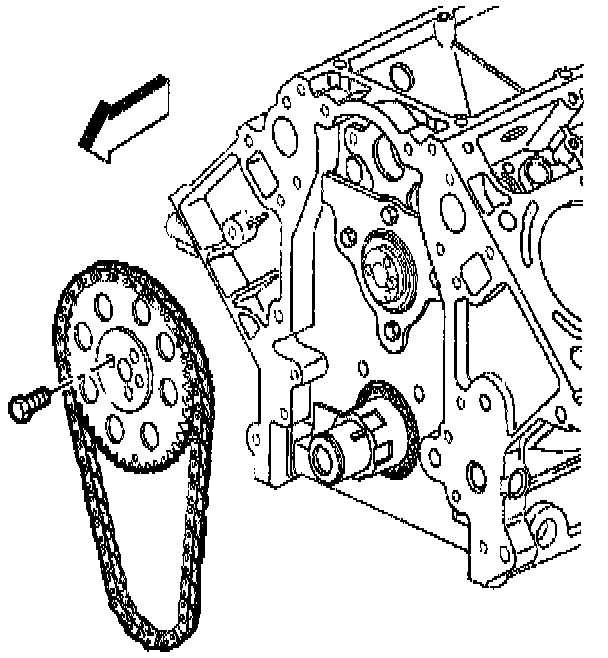

3. Remove the timing chain and sprocket.

INSTALLATION PROCEDURE

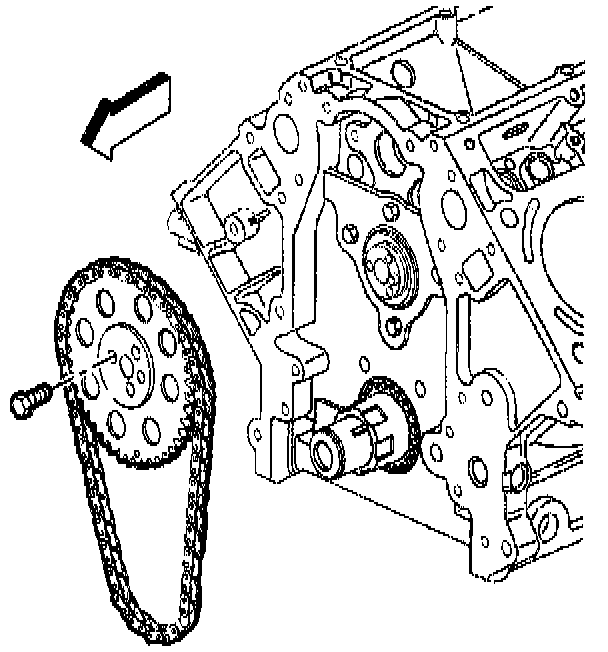

1. Install the timing chain and sprocket.
2. Install the oil pump.
