Control Assembly: Description and Operation
Control Assembly:

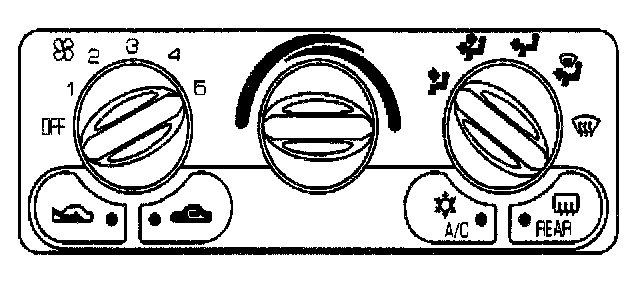

The heater and the A/C control head uses three knobs and four push buttons in order to control the following features:
-
The air delivery
-
The air temperature
-
The
blower motor speed
-
The rear defrost
A wiring harness connects the
compressor clutch and the
blower motor to the control head.
