Oil Pressure Sensor: Service and Repair
Description:
Description:
REMOVAL PROCEDURE
1. Remove the intake manifold.
2. Remove the Engine Oil Pressure (EOP) sensor electrical connector.
IMPORTANT: Clean the area around the EOP sensor before removal. This avoids debris from entering the engine.

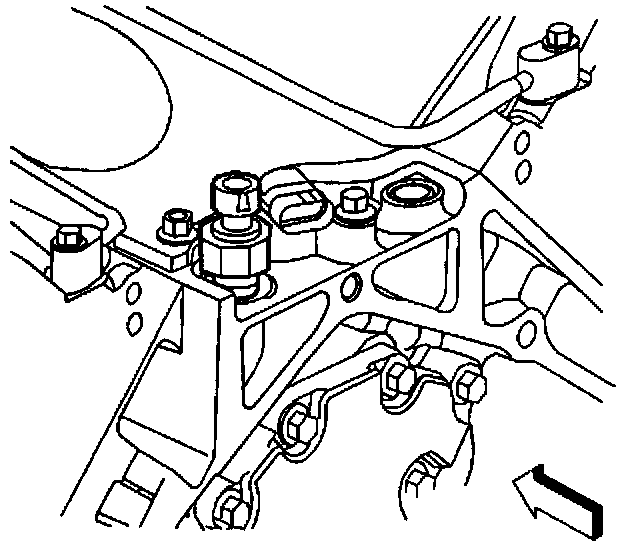

3. Remove the EOP sensor.
INSTALLATION PROCEDURE
1. Install the new EOP sensor. Tighten the EOP sensor to 20 Nm (15 lb. ft.).
2. Install the EOP sensor electrical connector.
3. Install the intake manifold.
