Ignition Coil: Service and Repair

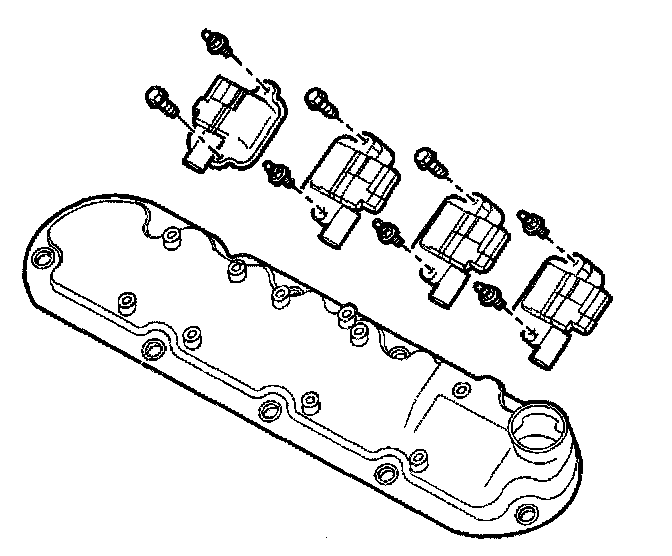

REMOVAL PROCEDURE

Caution: Refer to Battery Disconnect Caution in Cautions and Notices.




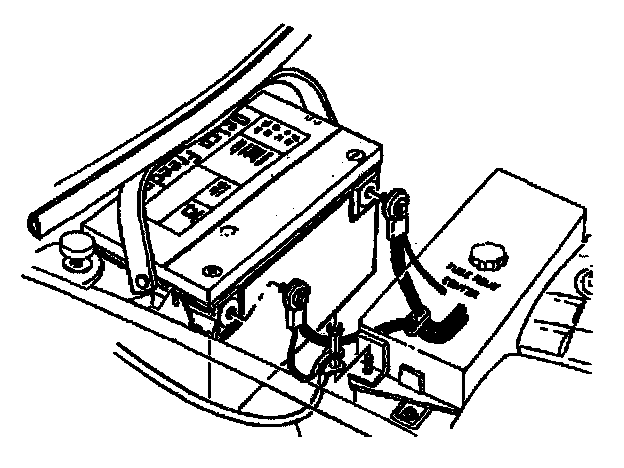

1. Disconnect the negative battery cable.




2. Remove the fuel rail cover.




3. Disconnect the ignition coil harness connector.
4. Disconnect the spark plug wire at the ignition coil.
5. Remove the ignition coil mounting bolts.
6. Remove the ignition coil.

INSTALLATION PROCEDURE




1. Install the ignition coil.
2. Install the ignition coil mounting bolts.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten
Tighten the ignition coil mounting bolts to 12 N.m (106 lb in).

3. Connect the spark plug wire at the ignition coil.
4. Connect the ignition coil harness connector.

Tighten
Tighten the harness bolt to 12 N.m (106 lb in).




5. Install the fuel rail cover.
6. Connect the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

7. Program the Transmitters. Refer to Transmitter Programming/Synchronization in Keyless Entry.
