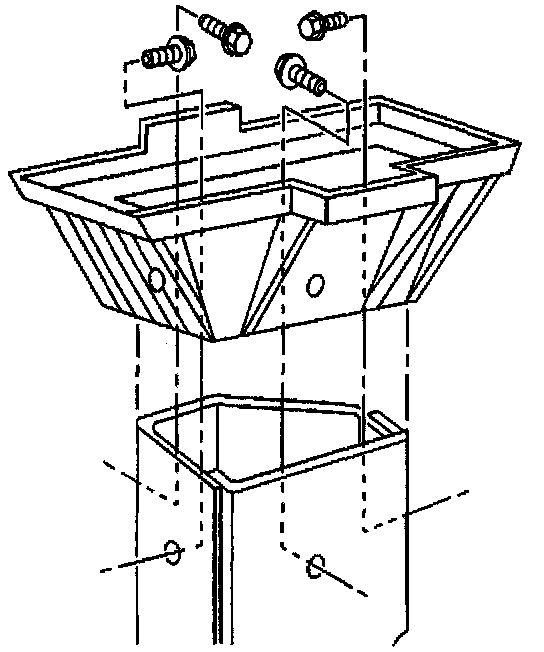

Battery Tray Replacement
REMOVAL PROCEDUREBattery Tray Replacement: Removal Procedure:
1.
Remove the battery.
2.
Remove the bolts attaching the tray.
3.
Remove the tray.
INSTALLATION PROCEDUREBattery Tray Replacement: Removal Procedure:
1.
Position the battery tray to the battery support.
2.
Install the bolts attaching the tray.
Tighten Tighten the battery tray bolts to
31 N.m (23 lb ft).
3.
Install the battery.
