Generator Replacement (Pulley Replacement)

REMOVAL PROCEDURE

Caution: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.

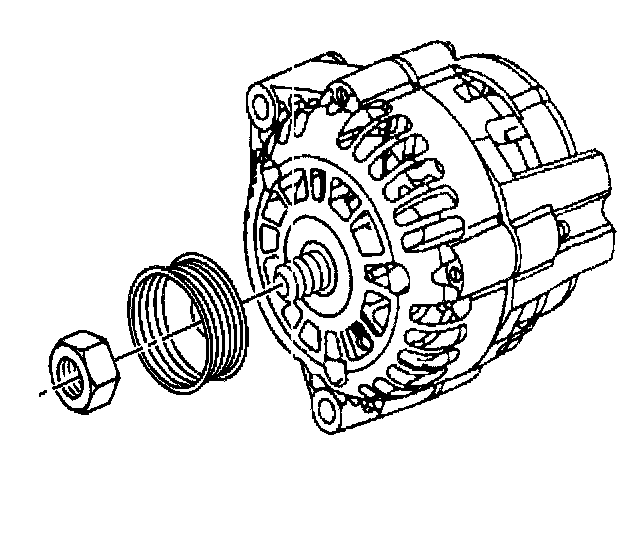

3. Install a T-50 into the generator shaft.
4. Remove the generator shaft nut and washer.
5. Remove the generator pulley.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.




1. Install the generator pulley, washer and shaft nut.

Tighten
Tighten the generator shaft nut to 75 N.m (55 lb ft).




2. Install the accessory drive belt (5).
3. Install the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

4. Program the Transmitters. Refer to Transmitter Programming/Synchronization in keyless Entry.
