Power Window Switch: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Protect the trim panel with a rag when prying up the switch to prevent marring the trim panel.

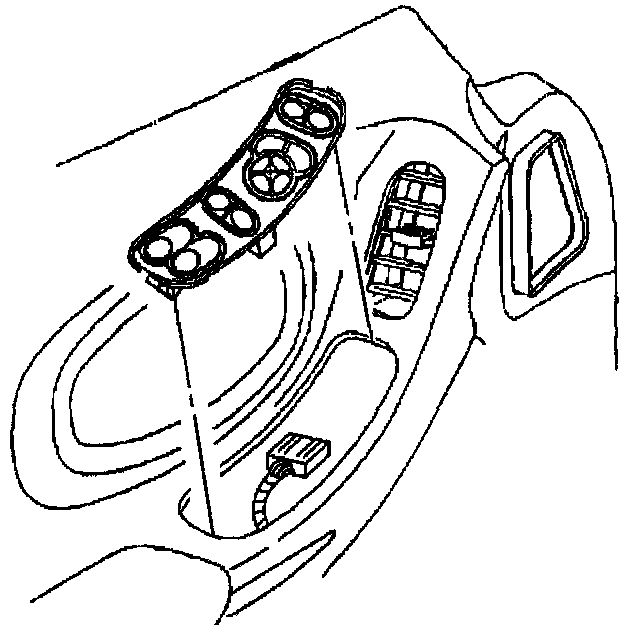

Power Window Switch Replacement: Removal Procedure:




1. Pry up the rear edge of the drivers side switch assembly, the front edge of the passenger side switch assembly.
2. Slide the drivers side switch assembly rearward, the passenger side switch assembly forward, out of the door trim panel.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE

Power Window Switch Replacement: Installation Procedure:




1. Connect the electrical connector to the switch.
2. Insert the front edge of the drivers side switch, the rear edge of the passenger side switch, into the door trim panel.
3. Press the rear edge of the drivers side switch, the front edge of the passenger side switch, into the trim panel to secure.
