Information Bus: Service and Repair

Data Link Connector:

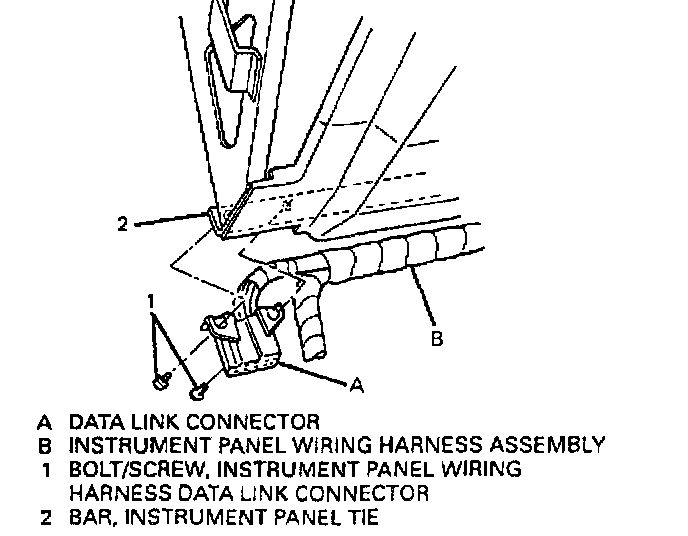

The data link connector is under the instrument panel, to the right of the steering column. It is part of the instrument panel wiring harness.

REMOVE OR DISCONNECT
1. Bolts/screws from data link connector.
2. Lower data link connector from instrument panel.

INSTALL OR CONNECT
1. Data link connector to instrument panel.
2. Bolts/screws to data link connector.

Tighten
^ Bolts/Screws to 2 N.m (18 lb. in.).
