Vent Control Cables






Removal Procedure

Important: Note the routing position of the cable in order ensure easy installation.

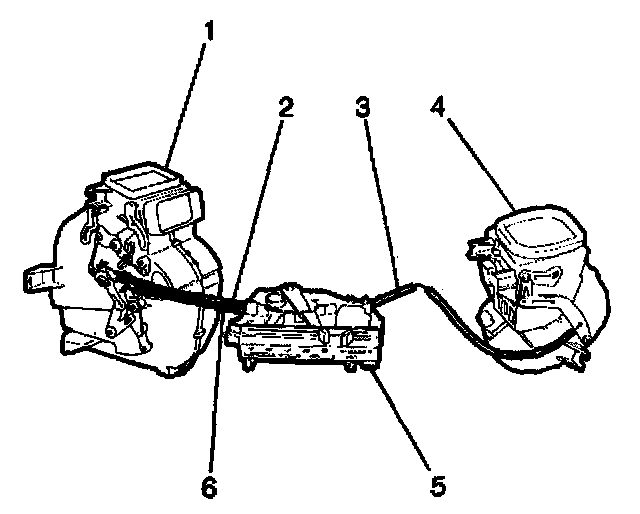

1. Disconnect the fresh/recirc control cable (3) at the blower case (4).
2. Remove the heater control unit (5).
3. Disconnect the fresh/recirc control cable at the heater control unit.
4. Remove the fresh/recirc control cable from the instrument panel (IP).

Installation Procedure

1. Position the fresh/recirc control cable (3) in the vehicle. Route the cable as previously noted.
2. Connect the fresh/recirc control cable to the heater control unit (5).
3. Install the heater control unit to the IP.
4. Adjust the fresh/recirc control cable.
